MB85RC64V - 64K-Bit I2C Memory FRAM

Fujitsu

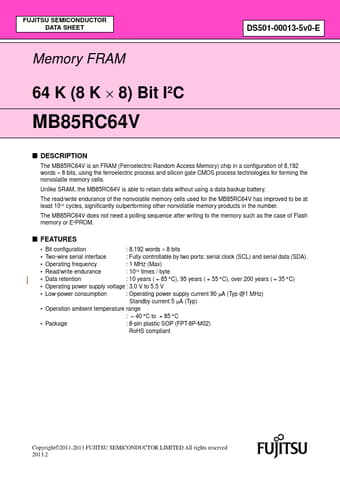

MB85RC64V Datasheet Preview — Preview of MB85RC64V PDF

Datasheet Details

Part number	MB85RC64V
Manufacturer	Fuji ↗tsu
File Size	1.34 MB
Description	64K-Bit I2C Memory FRAM
Datasheet	MB85RC64V-Fujitsu.pdf

MB85RC64V Product details

Description

The MB85RC64V is an FRAM (Ferroelectric Random Access Memory) chip in a configuration of 8,192 words  8 bits, using the ferroelectric process and silicon gate CMOS process technologies for forming the nonvolatile memory cells.

Features

br>.
Bit configuration : 8,192 words  8 bits.
Two-wire serial interface : Fully controllable by two ports: serial clock (SCL) and serial data (SDA).
Operating frequency : 1 MHz (Max).
Read/write endurance : 1012 times / byte.
Data retention : 10 years (  85 C), 95 years (  55 C), over 200 years (  35 C).
Operating power supply voltage : 3.0 V to 5.5 V.
Low-power consumption : Operating power supply current 90 A (Typ @.
