GS2962

3G/HD/SD-SDI Serializer

GS2962 Features

* Operation at 2.970Gb/s, 2.970/1.001Gb/s, 1.485Gb/s, 1.485/1.001Gb/s and 270Mb/s

* Supports SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292, SMPTE 259M-C and DVB-ASI

* Integrated Cable Driver

* Integrated, low noise VCO

* Integrated Narrow-Bandwidth P

GS2962 General Description

The GS2962 is a complete SDI Transmitter, generating a SMPTE 424M, SMPTE 292, SMPTE 259M-C or DVB-ASI compliant serial digital output signal. The integrated narrow-BW PLL allows the device to accept parallel clocks with high input jitter, and still provide a SMPTE compliant serial digital output. Th.

GS2962 Datasheet (1.05 MB)

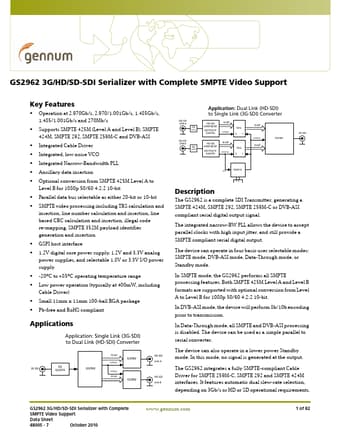

Preview of GS2962 PDF

Datasheet Details

Part number:

GS2962

Manufacturer:

GENNUM

File Size:

1.05 MB

Description:

3g/hd/sd-sdi serializer.
