GS2964 - Adaptive Cable Equalizer

GS2964 Description

GS2964 Adaptive Cable Equalizer Key .
The GS2964 is a high-speed BiCMOS integrated circuit designed to equalize and restore signals received over 75Ω coaxial cable.

GS2964 Features

* SMPTE 424M, SMPTE 292M and SMPTE 259M compliant
* Automatic cable equalization
* Multi-standard operation from 143Mb/s to 2.97Gb/s
* Performance optimized for 270Mb/s, 1.485Gb/s and 2.97Gb/s. Typical equalized length of Belden 1694A cable:
* 100m at 2.97Gb/s

📥 Download Datasheet

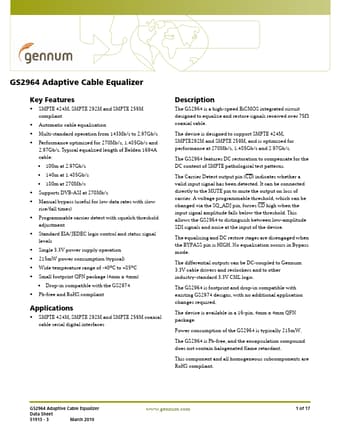

Preview of GS2964 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GS2964
Manufacturer
Gennum
File Size
361.84 KB
Datasheet
GS2964-Gennum.pdf
Description
Adaptive Cable Equalizer
