GS2965

Multi-Rate SDI Reclocker

GS2965 Features

* SMPTE 424M, SMPTE 292M and SMPTE 259M-C compliant

* Supports DVB-ASI at 270Mb/s

* Single supply operation at 3.3V or 2.5V

* 180mW typical power consumption (213mW with RCO enabled) at 2.5V

* Input signal equalization and output-signal de-emphasis settings to

GS2965 General Description

The GS2965 is a multi-rate serial digital reclocker designed to automatically recover the embedded clock from a digital video signal and retime the incoming video data. It will recover the embedded clock signal and retime the data from a SMPTE 424M, SMPTE 292M, or SMPTE 259M-C compliant digital vide.

GS2965 Datasheet (1.07 MB)

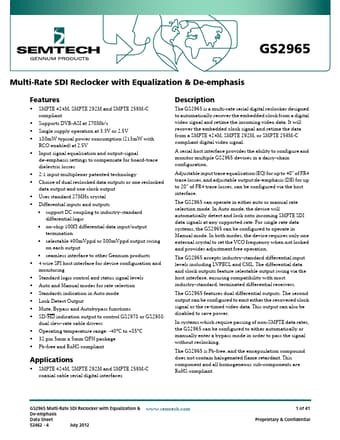

Preview of GS2965 PDF

Datasheet Details

Part number:

GS2965

Manufacturer:

Semtech

File Size:

1.07 MB

Description:

Multi-rate sdi reclocker.
