GS2971A - HD SD SDI Receiver

GS2971A Description

GS2971A 3Gb/s, HD, SD SDI Receiver, with Integrated Adaptive Cable Equalizer complete with SMPTE Audio and Video Processing Key .
The GS2971A is a multi-rate SDI integrated Receiver which includes complete SMPTE processing, as per SMPTE 425M, 292M and SMPTE 259M-C.

GS2971A Features

* Operation at 2.97Gb/s, 2.97/1.001Gb/s, 1.485Gb/s, 1.485/1.001Gb/s and 270Mb/s
* Supports SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292M, SMPTE 259M-C and DVB-ASI
* Integrated adaptive cable equalizer
* Typical equalized length of Belden 1694A cable:

GS2971A Applications

* Application: Single Link (3G-SDI) to Dual Link (HD-SDI) Converter 3G-SDI GS2971A 10-bit HV F/PCLK GS2962/72 HV F/PCLK 10-bit GS2962/72 HD-SDI Link A HD-SDI Link B 3G-SDI Application: 1080p50/60 Monitor AES - OUT GS2971A AUDIO 1/2 AUDIO 3/4 AUDIO 5/6 AUDIO 7/8 Audio Clocks Audio Selecto

📥 Download Datasheet

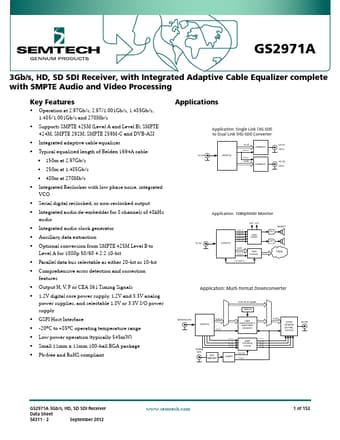

Preview of GS2971A PDF
