GS2970A - HD SD SDI Receiver

GS2970A Description

GS2970A 3Gb/s, HD, SD SDI Receiver Complete with SMPTE Audio and Video Processing Key .
The GS2970A is a multi-rate SDI Receiver which includes complete SMPTE processing, as per SMPTE 425M, 292 and SMPTE 259M-C.

GS2970A Features

* Operation at 2.970Gb/s, 2.970/1.001Gb/s, 1.485Gb/s, 1.485/1.001Gb/s and 270Mb/s
* Supports SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292, SMPTE 259M-C and DVB-ASI
* Integrated Reclocker
* Integrated low phase noise VCO
* Serial digital reclocked, o

GS2970A Applications

* Application: Single Link (3G-SDI) to Dual Link (HD-SDI) Converter 3G-SDI EQ GS2984/ GS2974 GS2970A 10-bit HV F/PCLK GS2962/72 HV F/PCLK 10-bit GS2962/72 HD-SDI Link A HD-SDI Link B 3G-SDI Application: 1080p50/60 Monitor EQ GS2984/ GS2974 AES - OUT GS2970A AUDIO 1/2 AUDIO 3/4 AUDIO 5/6

📥 Download Datasheet

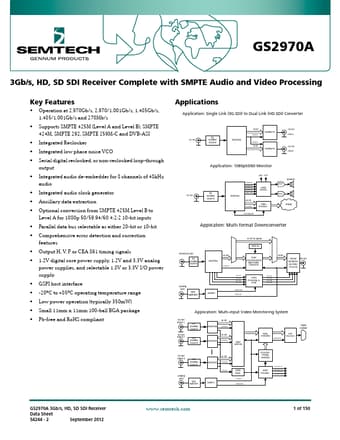

Preview of GS2970A PDF
