GS2974A - HD-LINX III Adaptive Cable Equalizer

GS2974A Description

GS2974A HD-LINX™ III Adaptive Cable Equalizer .
The GS2974A is a high-speed BiCMOS integrated circuit designed to equalize and restore signals received over 75Ω co-axial cable.

GS2974A Features

* SMPTE 424M, SMPTE 292M and SMPTE 259M compliant Automatic cable equalization 0.3UI Maximum Output Jitter at 2.97Gb/s Multi-standard operation from 143Mb/s to 2.

GS2974A Applications

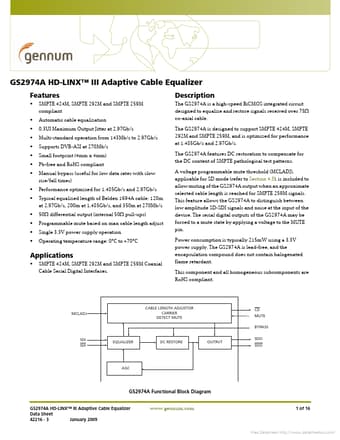

* SMPTE 424M, SMPTE 292M and SMPTE 259M Coaxial Cable Serial Digital Interfaces. MCLADJ CABLE LENGTH ADJUSTOR CARRIER DETECT MUTE CD MUTE BYPASS SDI SDI EQUALIZER DC RESTORE OUTPUT SDO SDO AGC GS2974A Functional Block Diagram GS2974A HD-LINX™ III Adaptive Cable Equalizer Data Sheet
