GS2974B - HD-LINX III Adaptive Cable Equalizer

GS2974B Description

GS2974B HD-LINX™ III Adaptive Cable Equalizer .
The GS2974B is a high-speed BiCMOS integrated circuit designed to equalize and restore signals received over 75Ω co-axial cable.

GS2974B Features

* SMPTE 424M, SMPTE 292M, 344M and SMPTE 259M compliant Automatic cable equalization Multi-standard operation from 143Mb/s to 2.97Gb/s Supports DVB-ASI at 270Mb/s

GS2974B Applications

* SMPTE 424M, SMPTE 292M and SMPTE 259M Coaxial Cable Serial Digital Interfaces. MCLADJ CABLE LENGTH ADJUSTOR CARRIER DETECT MUTE CD MUTE BYPASS SDI SDI EQUALIZER DC RESTORE OUTPUT SDO SDO AGC GS2974B Functional Block Diagram GS2974B GS2974B HD-LINX™ III Adaptive Cable Equalizer D

📥 Download Datasheet

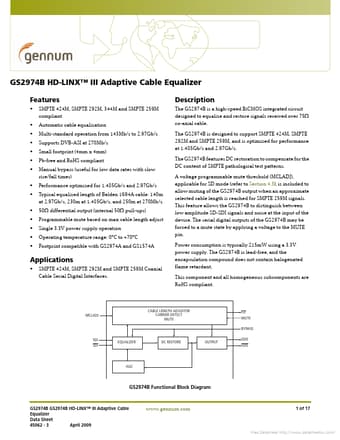

Preview of GS2974B PDF
