GS2924

300mA CMOS LDO Voltage Regulator

GS2924 Features

* Maximum output current: 300mA

* Output voltage: 1.5V to 5.0V

* Highly accurate: Output voltage ± 2% (±1% for semi-custom products)

* Low power consumption: Typ. 2.0µA at VOUT= 5.0V

* Output voltage temperature coefficient 0.1%/V: Typ. ±100ppm/ºC

* In

GS2924 General Description

The GS2924 is a positive voltage output, three-pin regulator that provides a high current even when the input/output voltage differential is small. Low power consumption and high accuracy is achieved through CMOS and laser trimming technologies. The GS2924 consists of a high-precision voltage refere.

GS2924 Datasheet (0.99 MB)

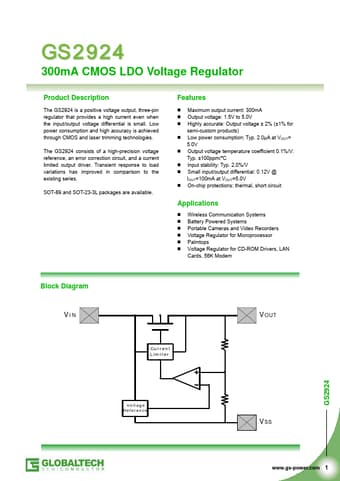

Preview of GS2924 PDF

Datasheet Details

Part number:

GS2924

Manufacturer:

Globaltech

File Size:

0.99 MB

Description:

300ma cmos ldo voltage regulator.
