GS2961A - HD SD SDI Receiver

GS2961A Description

GS2961A 3Gb/s, HD, SD SDI Receiver, with Integrated Adaptive Cable Equalizer complete with SMPTE Video Processing Key .
The GS2961A is a multi-rate SDI integrated Receiver which includes complete SMPTE processing, as per SMPTE 425M, 292M and SMPTE 259M-C.

GS2961A Features

* Operation at 2.97Gb/s, 2.97/1.001Gb/s, 1.485Gb/s, 1.485/1.001Gb/s and 270Mb/s
* Supports SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292M, SMPTE 259M-C and DVB-ASI
* Integrated adaptive cable equalizer
* Typical equalized length of Belden 1694A cable:

GS2961A Applications

* Application: Single Link (3G-SDI) to Dual Link (HD-SDI) Converter 3G-SDI GS2961A 10-bit HV F/PCLK HV F/PCLK 10-bit GS2962 GS2962 HD-SDI Link A HD-SDI Link B HD-SDI Link A HD-SDI Link B Application: Dual Link (HD-SDI) to Single Link (3G-SDI) Converter HD-SDI Deserializer GS2961A 10-bit HV F

📥 Download Datasheet

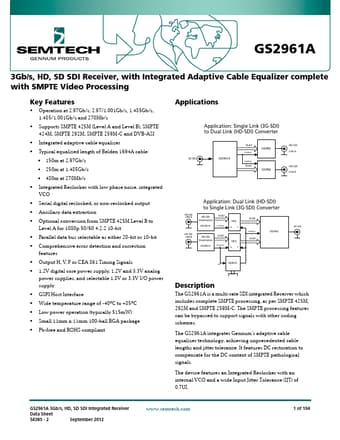

Preview of GS2961A PDF
