GS2960A - HD SD SDI Receiver

GS2960A Description

GS2960A 3Gb/s, HD, SD SDI Receiver Complete with SMPTE Video Processing Key .
The GS2960A is a multi-rate SDI Receiver which includes complete SMPTE processing, as per SMPTE 425M, 292 and SMPTE 259M-C.

GS2960A Features

* Operation at 2.97Gb/s, 2.97/1.001Gb/s, 1.485Gb/s, 1.485/1.001Gb/s and 270Mb/s
* Supports SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292, SMPTE 259M-C and DVB-ASI
* Integrated Reclocker
* Integrated low phase noise VCO
* Serial digital reclocked, or

GS2960A Applications

* Application: Single Link (3G-SDI) to Dual Link (HD-SDI) Converter 3G-SDI Gennum Equalizer GS2960A 10-bit HV F/PCLK HV F/PCLK 10-bit GS2962 GS2962 HD-SDI Link A HD-SDI Link B HD-SDI Link A HD-SDI Link B Application: Dual Link (HD-SDI) to Single Link (3G-SDI) Converter HD-SDI Deserializer GS2

📥 Download Datasheet

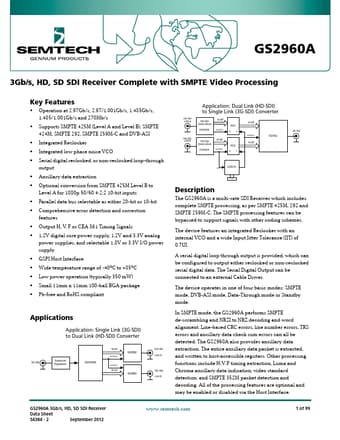

Preview of GS2960A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GS2960A
Manufacturer
Semtech
File Size
2.38 MB
Datasheet
GS2960A-Semtech.pdf
Description
HD SD SDI Receiver
