1N914B - SMALL SIGNAL SWITCHING DIODE

This page provides the datasheet information for the 1N914B, a member of the 1N914 SMALL SIGNAL SWITCHING DIODE family.

Datasheet Summary

Features

  • ƺ Glass sealed envelope. (MSD) ƺ VRM=100V guaranteed ƺ High reliability.

📥 Download Datasheet

Datasheet preview – 1N914B

Datasheet Details

Part number 1N914B
Manufacturer GME
File Size 92.52 KB
Description SMALL SIGNAL SWITCHING DIODE
Datasheet download datasheet 1N914B Datasheet

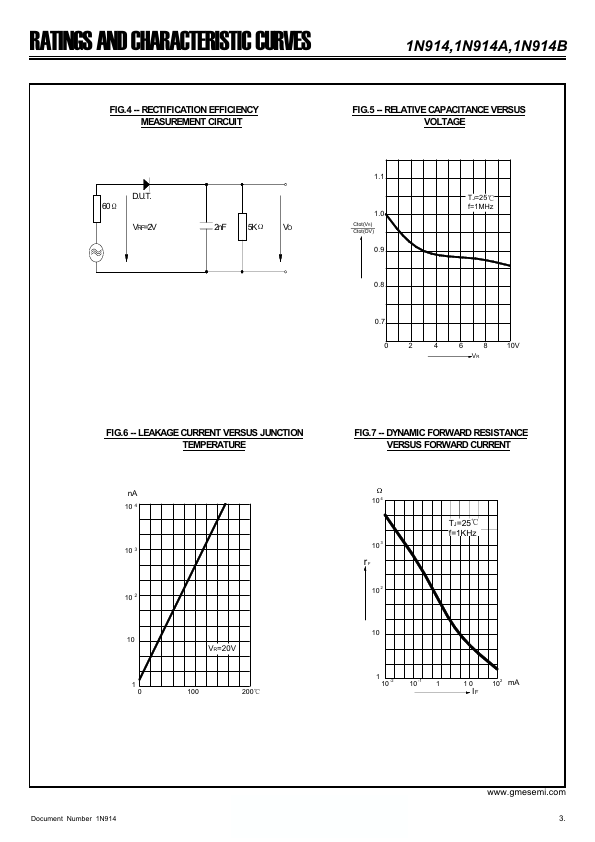

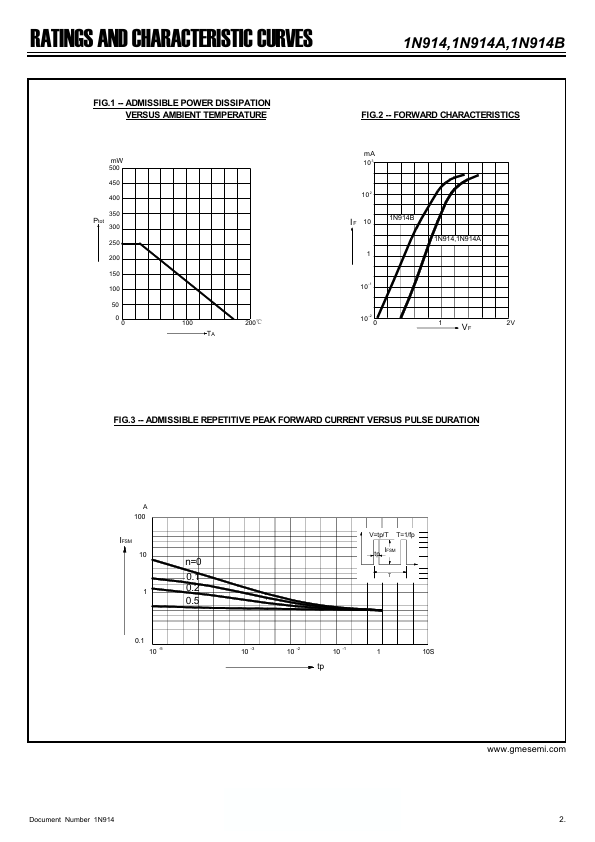

Additional preview pages of the 1N914B datasheet.

📁 Similar Datasheet

  • 1N914B - Silicon Rectifier Diode (NTE)
  • 1N914B - SWITCHING RECTIFIERS (Digitron Semiconductors)
  • 1N914B - HIGH SPEED SWITCHING DIODES (EIC)
  • 1N914B - 500mW 100 Volt Silicon Epitaxial Diodes (MCC)
  • 1N914B - SIGNAL DIODE (WILLAS)
  • 1N914B - Small Signal Diode (ON Semiconductor)
  • 1N914B - FAST SWITCHING DIODE (Diodes)
  • 1N914B - HIGH SPEED SILICON SWITCHING DIODE (TRANSYS)
  • 1N914B - Switching Diode (TAITRON)
  • 1N914B - High Speed Switching Diode (Taiwan Semiconductor)
Other Datasheets by GME
  • 1N914 - SMALL SIGNAL SWITCHING DIODE
  • 1N914A - SMALL SIGNAL SWITCHING DIODE

Full PDF Text Transcription

Click to expand full text

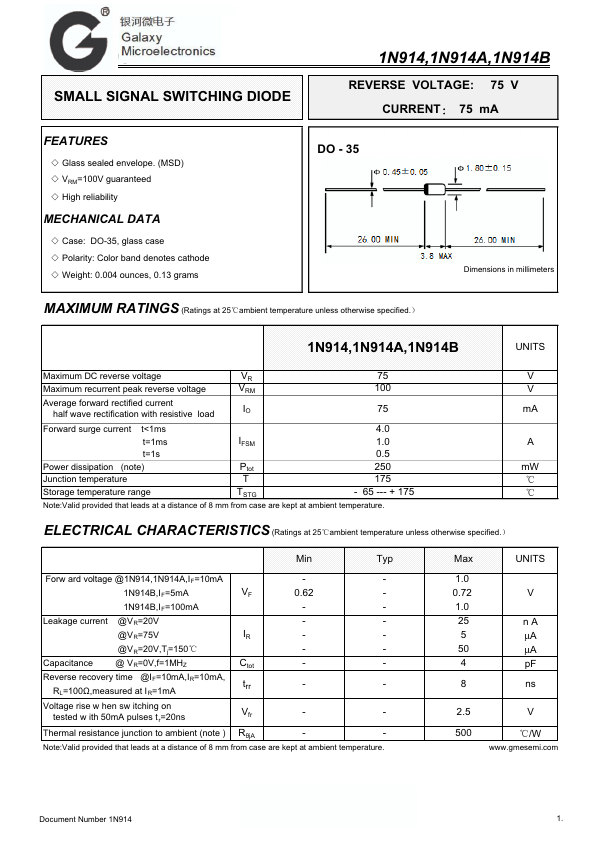

BL G SMALL SIGNAL SWITCHING DIODE FEATURES ƺ Glass sealed envelope. (MSD) ƺ VRM=100V guaranteed ƺ High reliability MECHANICAL DATA ƺ Case: DO-35, glass case ƺ Polarity: Color band denotes cathode ƺ Weight: 0.004 ounces, 0.13 grams 1N914,1N914A,1N914B REVERSE VOLTAGE: 75 V CURRENT 75 mA DO - 35 Dimensions in millimeters MAXIMUM RATINGS (Ratings at 25ćambient temperature unless otherwise specified.˅ 1N914,1N914A,1N914B UNITS Maximum DC reverse voltage VR 75 Maximum recurrent peak reverse voltage VRM 100 Average forward rectified current half wave rectification with resistive load IO 75 Forward surge current t<1ms t=1ms t=1s Power dissipation (note) Junction temperature Storage temperature range IFSM Ptot T TSTG 4.0 1.0 0.
