Part number:
2SD2150
Manufacturer:
GME
File Size:
184.02 KB
Description:
Low frequency transistor.

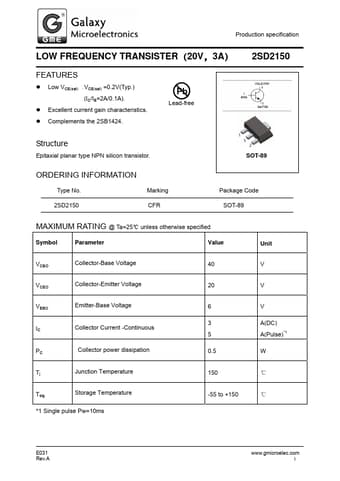

* z Low VCE(sat) :VCE(sat) =0.2V(Typ.) (IC/IB=2A/0.1A). z Excellent current gain characteristics. z Complements the 2SB1424. Pb Lead-free 2SD2150 Structure Epitaxial planar type NPN silicon transistor. ORDERING INFORMATION Type No. Marking 2SD2150 CFR SOT-89 Package Code SOT-89 MAXIMUM RATIN
2SD2150
GME
184.02 KB
Low frequency transistor.
