2SD2137A - Power Transistors

2SD2137A Description

Production specification Power Transistors 2SD2137A .

2SD2137A Features

* High Forward Current Transfer Ratio hFE Which Has Satisfactory Linearity. Pb Lead-free
* Low Collector-emitter Saturation Voltage VCE(sat).

2SD2137A Applications

* For Power Amplification.
* Complementary to 2SB1417A. TO-220AB MAXIMUM RATING operating temperature range applies unless otherwise specified Symbol Parameter Value Unit VCBO Collector-Base Voltage 80 V VCEO VEBO IC ICP PC Tj,Tstg Collector-Emitter Voltage Emitter-Base Voltage C

📥 Download Datasheet

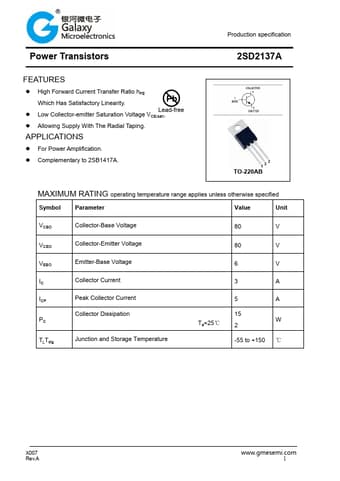

Preview of 2SD2137A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SD2137A
Manufacturer
GME
File Size
287.04 KB
Datasheet
2SD2137A-GME.pdf
Description
Power Transistors
