MBR1660B - D2PAK SURFACE SCHOTTKY BARRIER RECTIFIER

Product Overview

Part number	MBR1660B
Manufacturer	GOOD ELECTRONIC
File Size	77.10 KB
Description	D2PAK SURFACE SCHOTTKY BARRIER RECTIFIER
Datasheet	MBR1660B Datasheet
Note	This datasheet PDF includes multiple part numbers: MBR1660B, MBR1620B. Please refer to the document for exact specifications by model.

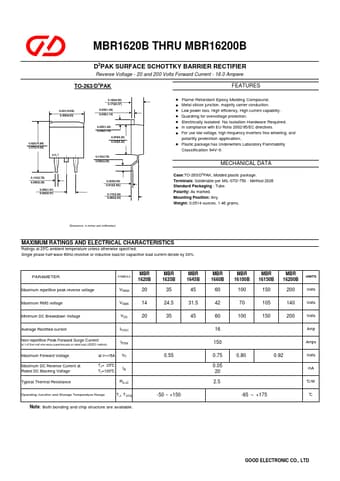

Additional preview pages of the MBR1660B datasheet.

0.421(10.69) 0.380(9.65) 0.625(15.88) 0.575(14.60) pin 1 0.110(2.79) 0.090(2.29) 0.040(1.01) 0.020(0.51) 0.190(4.83) 0.172(4.37) 0.055(1.40) 0.045(1.14) 0.055(1.40) 0.045(1.14) 0.364(9.25) 0.325(8.25) 0.110(2.79) 0.090(2.29) 0.025(0.64) 0.012(0.30)) 0.115(2.92) 0.080(2.03).
Flame Retardant Epoxy Molding Compound.
Metal silicon junction, majority carrier conduction.
Low power loss, High efficiency, High current capability.
Guardring for overvoltage protection.
E.
