MBR1660F - 16 AMPERS ISOLATION SCHOTTKY BARRIER RECTIFIER

Product Overview

Part number	MBR1660F
Manufacturer	GOOD ELECTRONIC
File Size	77.75 KB
Description	16 AMPERS ISOLATION SCHOTTKY BARRIER RECTIFIER
Datasheet	MBR1660F Datasheet
Note	This datasheet PDF includes multiple part numbers: MBR1660F, MBR1620F. Please refer to the document for exact specifications by model.

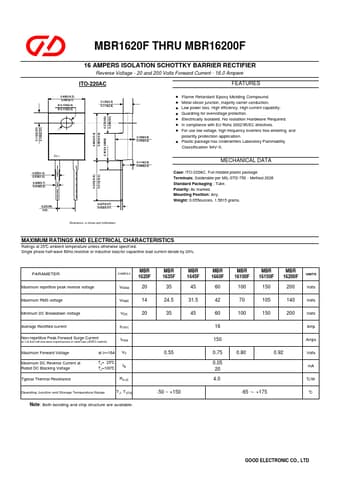

Additional preview pages of the MBR1660F datasheet.

0.406(10.3) 0.381(9.7) Ø 0.134(3.4) Ø 0.118(3.0) 0.130(3.3) 0.114(2.9) 0.272(6.9) 0.248(6.3) 0.161(4.1)MAX 0.606(15.4) 0.583(14.8) 0.112(2.85) 0.100(2.55) Pin 1 0.055(1.4) 0.039(1.0) 0.028(0.7) 0.019(0.5) 0.2(5.08) TYP. 0.543(13.8) 0.512(13.0) 0.027(0.67) 0.022(0.57) 0.189(4.8) 0.165(4.2) 0.114(2.9) 0.098(2.5).
Flame Retardant Epoxy Molding Compound.
Metal silicon junction, majority carrier conduction.
Low power loss, High efficiency, High current capability.
Gu.
