GE630 N-CHANNEL ENHANCEMENT MODE POWER MOSFET

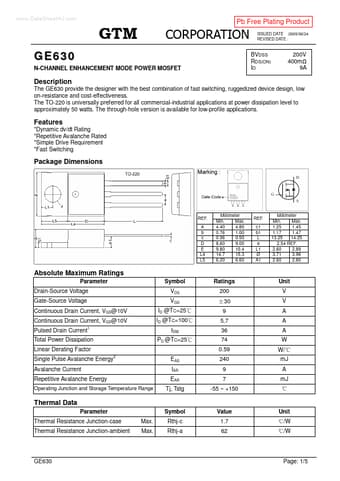

www.DataSheet4U.com Pb Free Plating Product ISSUED DATE :2005/06/24 REVISED DATE : GE630 N-CHANNEL ENHANCEMENT MODE POWER MOSFET BVDSS RDS(ON) ID 200V 400m 9A The GE630 provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-220 is universally preferred for all commercial-industrial applications at power dissipation level to approximately 50 watts. The through-hole version is available for low-profile appli.

GE630 Features

* Package Dimensions REF. A b c D E L4 L5 Millimeter Min. Max. 4.40 4.80 0.76 1.00 0.36 0.50 8.60 9.00 9.80 10.4 14.7 15.3 6.20 6.60 REF. c1 b1 L e L1 Ø A1 Millimeter Min. Max. 1.25 1.45 1.17 1.47 13.25 14.25 2.54 REF. 2.60 2.89 3.71 3.96 2.60 2.80 Absolute Maximum Ratings Parameter Drain-Source
