GS-065-008-6-L Datasheet - GaN Systems

GS-065-008-6-L, 700V E-mode GaN transistor

.
The GS-065-008-6-L is an enhancement mode GaNon-Silicon power transistor.

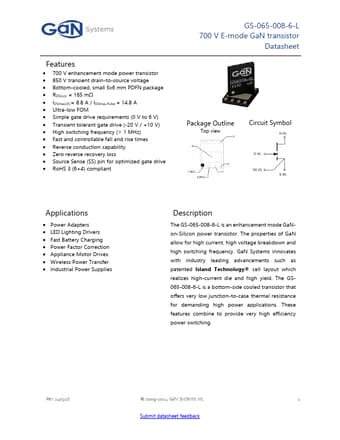

datasheet Preview Page 1 from Datasheet4u.com

GS-065-008-6-L-GaNSystems.pdf

GS-065-008-6-L Datasheet Preview — Preview of GS-065-008-6-L PDF

Datasheet Details

Part number:

GS-065-008-6-L

Manufacturer:

GaN Systems

File Size:

796.77 KB

Description:

700V E-mode GaN transistor

Features

* 700 V enhancement mode power transistor
* 850 V transient drain-to-source voltage
* Bottom-cooled, small 5x6 mm PDFN package
* RDS(on) = 165 mΩ
* IDSmax,DC= 8.8 A / IDSmax,Pulse = 14.8 A
* Ultra-low FOM
* Simple gate drive requirements (0 V t

Applications

* Power Adapters
* LED Lighting Drivers
* Fast Battery Charging
* Power Factor Correction
* Appliance Motor Drives
* Wireless Power Transfer
