1N5619GP - GLASS PASSIVATED JUNCTION FAST SWITCHING RECTIFIER

Name: 1N5619GP
SKU: 1N5619GP-106872

General Semiconductor

The 1N5619GP by General Semiconductor is a GLASS PASSIVATED JUNCTION FAST SWITCHING RECTIFIER. Below is the official datasheet preview.

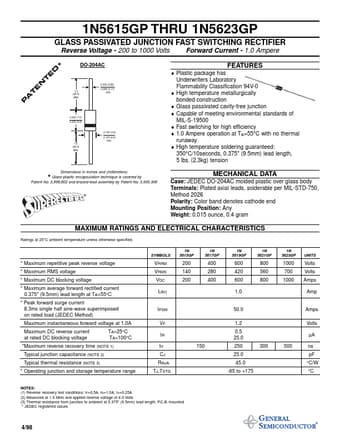

Datasheet Details

Part number	1N5619GP
Manufacturer	General Semiconductor
File Size	63.87 KB
Description	GLASS PASSIVATED JUNCTION FAST SWITCHING RECTIFIER
Datasheet	1N5619GP_GeneralSemiconductor.pdf
Additional preview pages of the 1N5619GP datasheet.

Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
High temperature metallurgically bonded construction.
Glass passivated cavity-free junction.
Capable of meeting environmental standards of MIL-S-19500.
Fast switching for high efficiency.
1.0 Ampere operation at TA=55°C with no thermal runaway.
High temperature soldering guaranteed: 350°C/10seconds, 0.375" (9.5mm) lead length, 5 lbs. (2.3kg) tension N T.
