GS9007

Quad Serial Digital Cable Driver

GS9007 Features

* two output pairs (four outputs total) meeting SMPTE 259M

* nominal 550 ps rise and fall times

* accepts SMPTE and standard ECL input levels

* operates from a single +5 or -5 volt supply

* on-chip DC restoration for low jitter

* 250 mW power dis

GS9007 General Description

The GENLINX™ GS9007 is a bipolar integrated circuit designed to drive four 75 Ω co-axial cables with SMPTE level serial digital video signals at data rates exceeding 400 Mb/s. It directly interfaces with other GENLINX™ devices and can also be used as a general purpose high speed cable driver. The di.

GS9007 Datasheet (124.57 KB)

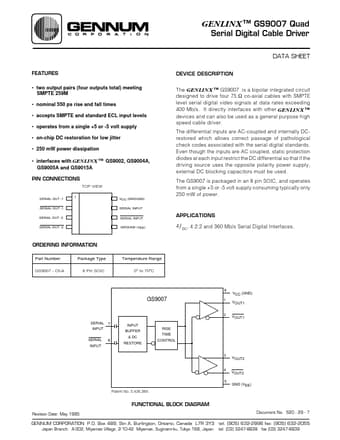

Preview of GS9007 PDF

Datasheet Details

Part number:

GS9007

Manufacturer:

Gennum

File Size:

124.57 KB

Description:

Quad serial digital cable driver.
