GS9008A - Cable Driver

GS9008A Description

GS9008A NOT RECOMMENDED FOR NEW DESIGNS GENLINX ™ GS9008A Cable Driver with Two Adjustable Outputs KEY .
The GENLINX™ GS9008A is a bipolar integrated circuit designed to drive two 75 Ω co-axial cables at data rates exceeding 400Mb/s.

GS9008A Features

* two output pairs, adjustable from 0 to 1100mVp-p into 75 Ω loads
* nominal 600 ps rise and fall times
* accepts SMPTE and standard ECL input levels
* operates from a single +5 or -5 volt supply
* on-chip DC restoration for low jitter
* 170mW power di

GS9008A Applications

* SMPTE 259M Serial Digital Systems (4:2:2 & 4ƒsc)
* Other Serial Digital Video Interfaces
* 360Mb/s

📥 Download Datasheet

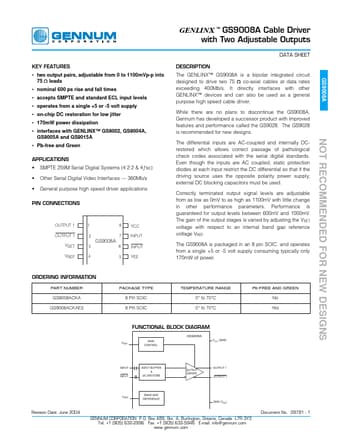

Preview of GS9008A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GS9008A
Manufacturer
Gennum
File Size
63.04 KB
Datasheet
GS9008A-Gennum.pdf
Description
Cable Driver
