GL911Tx - Wireless Mouse Transmitter Controller

3.1 Block Diagram DC-DC Step Up PCB Loop Antenna Txen X/Y/Z/W Transmitter Txdata Buttons GL911Tx Module Tx Crystal Figure 3-1:GL911Tx Block Diagram 2Mhz Resonator 3.2 Power supply GL911Tx‘s operation voltage is between 2.2V to 5.0V. It is recommended to use DC-DC step up converter to provide a st.

GL911Tx Features

* lFully CMOS Static Design l8 Bits RISC-like Micro Controller l1K

* 13 bits ROM / 48 Bytes RAM l2Mhz external clock lSupport analog or digital photo sensor lBuilt in Genesys Logic’s proprietary wireless link protocol lLow-cost & Low Power solution lPackage : 18Pin PDIP / SOP 18 BUTM XLOBAT GND XRS

GL911Tx_Gensys.pdf

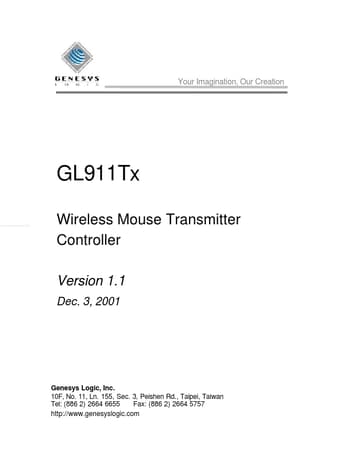

GL911Tx Datasheet Preview — Preview of GL911Tx PDF

Datasheet Details

Part number:

GL911Tx

Manufacturer:

Gensys

File Size:

158.91 KB

Description:

Wireless mouse transmitter controller.
