GL9411A - PNP SILICON PLANAR MEDIUM POWER high gain TRANSISTOR

Datasheet Summary

Features

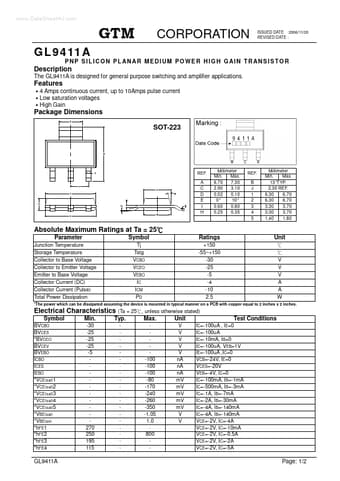

  • The GL9411A is designed for general purpose switching and amplifier.

📥 Download Datasheet

Datasheet preview – GL9411A

Datasheet Details

Part number GL9411A
Manufacturer GTM
File Size 469.75 KB
Description PNP SILICON PLANAR MEDIUM POWER high gain TRANSISTOR
Datasheet download datasheet GL9411A Datasheet
