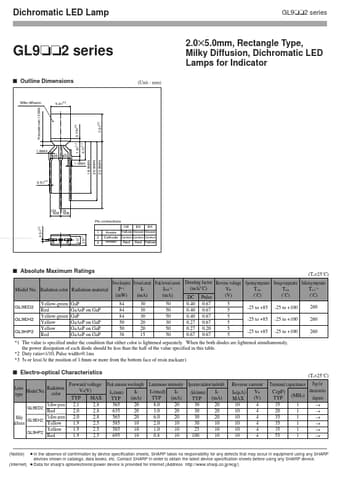

Dichromatic LED Lamp
GL9tt2 series
GL9tt2 series
s Outline Dimensions
(Unit : mm)
2.0!5.0mm, Rectangle Type, Milky Diffusion, Dichromatic LED Lamps for Indicator
Milky diffusion Protruded resin 1.5 MAX
5.0±0.2
1.0±0.2
0.75±0.2
1.0MAX
2.39 NOM 2.39 NOM
4.7±0.5
18.0MIN 20.0MIN
1.1MAX
0.5±0.2
2.54 2.54 NOM NOM
Pin connections 1 2 3 ED EH HP Anode Yellow Yellow-green Yellow-green Cathode Common Common Common Anode Red Red Yellow 0.5±0.2
0.2
2.0±
1
2
3
s Absolute Maximum Ratings
Power dissipation Forward current Peak forward current P*1 IF IFM*2 Model No.
