GL9ED2 2.0X5.0mm/ Rectangle Type/ Milky Diffusion/ Dichromatic LED Lamps for Indicator

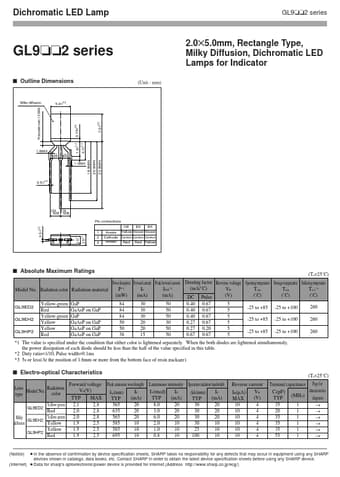

Dichromatic LED Lamp GL9tt2 series GL9tt2 series s Outline Dimensions (Unit : mm) 2.0!5.0mm, Rectangle Type, Milky Diffusion, Dichromatic LED Lamps for Indicator Milky diffusion Protruded resin 1.5 MAX 5.0±0.2 1.0±0.2 0.75±0.2 1.0MAX 2.39 NOM 2.39 NOM 4.7±0.5 18.0MIN 20.0MIN 1.1MAX 0.5±0.2 2.54 2.54 NOM NOM Pin connections 1 2 3 ED EH HP Anode Yellow Yellow-green Yellow-green Cathode Common Common Common Anode Red Red Yellow 0.5±0.2 0.2 2.0± 1 2 3 s Absolute Maximum Ratings P.
