GL949 - PNP SILICON PLANAR HIGH CURRENT TRANSISTOR

Datasheet Summary

Features

  • ISSUED DATE :2006/11/20.

📥 Download Datasheet

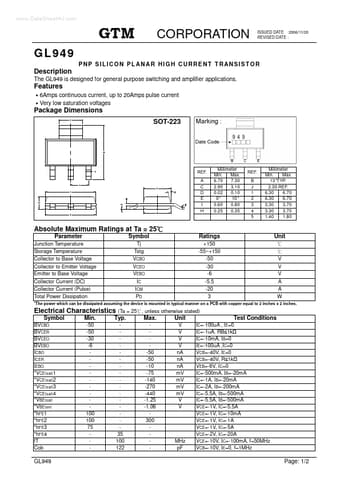

Datasheet preview – GL949

Datasheet Details

Part number GL949
Manufacturer GTM
File Size 478.28 KB
Description PNP SILICON PLANAR HIGH CURRENT TRANSISTOR
Datasheet download datasheet GL949 Datasheet
