GL965 Datasheet - GTM

GL965 NPN SILICON PLANAR HIGH CURRENT TRANSISTOR

NP N E PITAX I AL PLANAR T RANSI STOR The GL965 is designed for use as AF output amplifier and flash unit. Package Dimensions SOT-223 REF. A C D E I H Millimeter Min. Max. 6.70 7.30 2.90 3.10 0.02 0.10 10 0 0.60 0.80 0.25 0.35 REF. B J 1 2 3 4 5 Millimeter Min. Max. 13 TYP. 2.30 REF. 6.30 6.7.

GL965_GTM.pdf

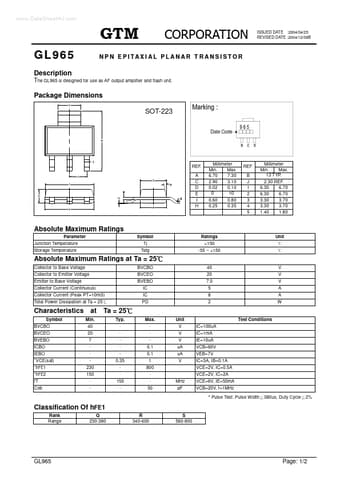

Preview of GL965 PDF
GL965 Datasheet Preview Page 2

Datasheet Details

Part number:

GL965

Manufacturer:

GTM

File Size:

184.28 KB

Description:

Npn silicon planar high current transistor.
