GD16584 (GD16584 / GD16588) Receiver / CDR DeMUX

GD16584 Description

www.DataSheet4U.com an Intel company 10 Gbit/s Receiver, CDR and DeMUX GD16584/GD16588 (FEC) Preliminary General .
GD16584 and GD16588 are Receiver chips for use in STM-64/192 and Optical Transport Networking (OTN) systems.

GD16584 Features

* 500 ppm from the reference clock, it automatically switches the phase and frequency detector into the PLL loop. In the auto lock mode the locking range is selectable between 500 or 2000 ppm. When the VCO frequency is within the lock range, the Bang-Bang Phase Detector takes over. It controls the pha

GD16584 Applications

* l (PHIGH) (PLOW) Lock Detect LOCK l Telecommunication systems:
* SDH STM-64
* SONET OC-192.
* Optical Transport Networking (OTN)
* FEC applications Fibre optic test equipment. Submarine systems. Data Sheet Rev. : 12 RESET TCK SEL3 SEL1 SEL2 VCC VDD VDDA VD

📥 Download Datasheet

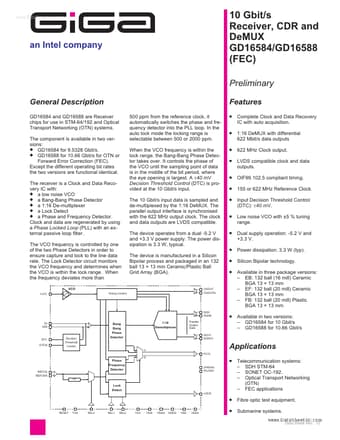

GD16584 Datasheet Preview — Preview of GD16584 PDF
