GD1000HTA75P6HT - IGBT

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

They are designed for the applications such as hybrid and electric vehicle.

Features

  • Low VCE(sat) Trench IGBT technology.
  • Low switching losses.
  • 6μs short circuit capability.
  • VCE(sat) with positive temperature coefficient.
  • Maximum junction temperature 175oC.
  • Low inductance case.
  • Fast & soft reverse recovery anti-parallel FWD.
  • Isolated copper pinfin baseplate using Si3N4 AMB technology Typical.

📥 Download Datasheet

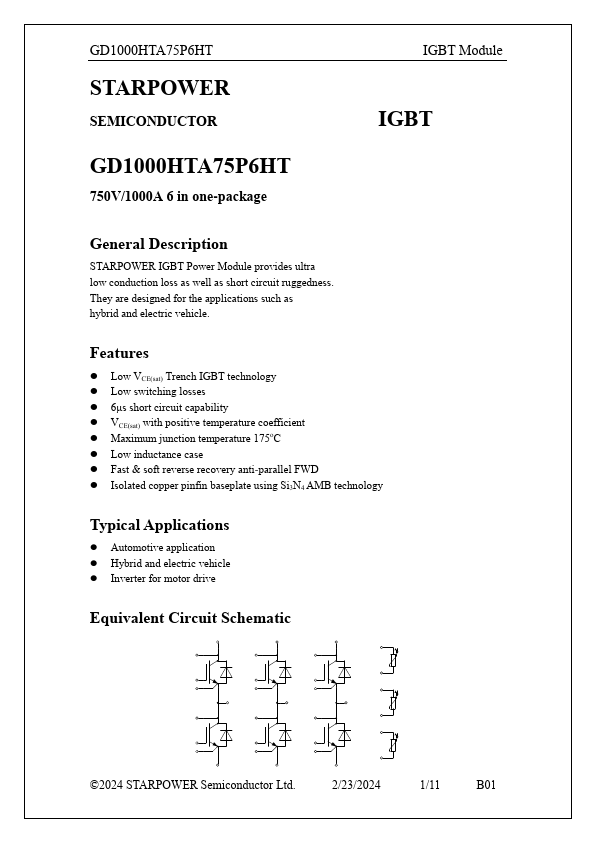

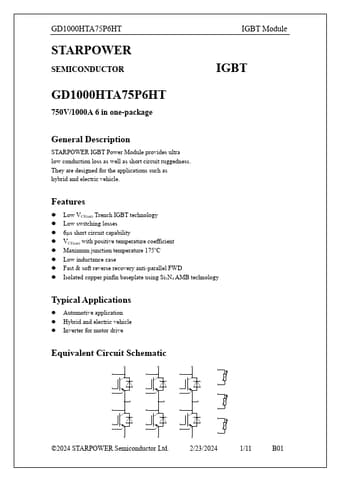

Datasheet preview – GD1000HTA75P6HT

Datasheet Details

Part number GD1000HTA75P6HT
Manufacturer STARPOWER
File Size 637.20 KB
Description IGBT
Datasheet download datasheet GD1000HTA75P6HT Datasheet

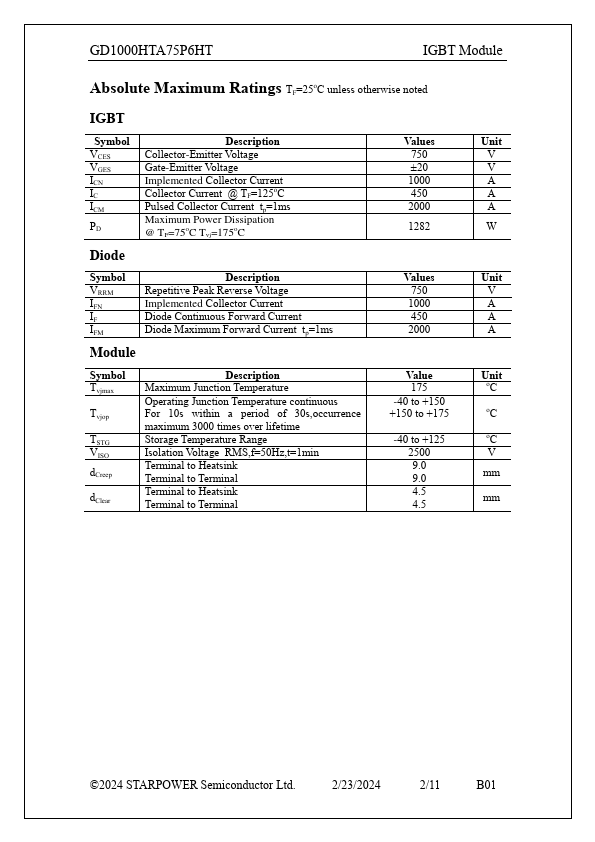

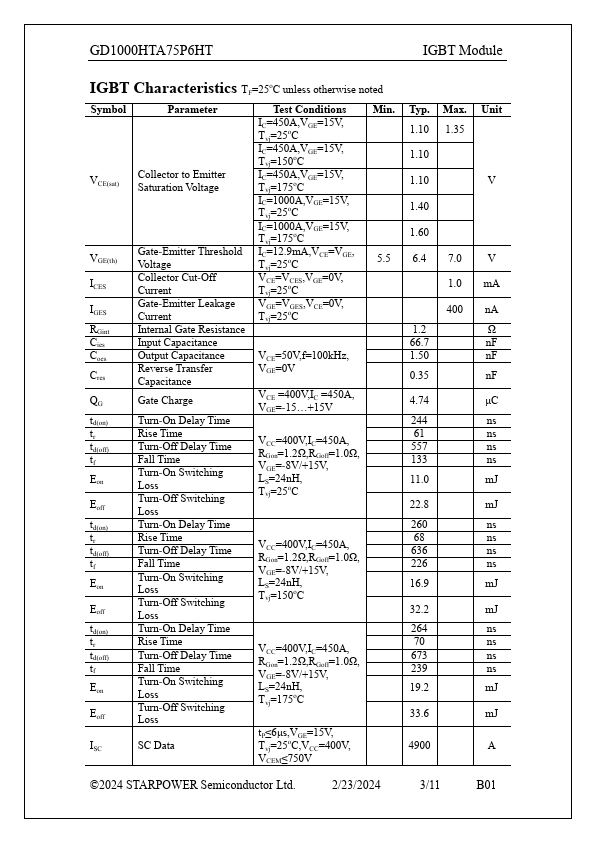

Additional preview pages of the GD1000HTA75P6HT datasheet.

📁 Similar Datasheet

  • GD103SD - SWITCHING DIODE (GTM)
  • GD10HF60KD - short-circuit rugged IGBT (STMicroelectronics)
  • GD10MPS12A - Silicon Carbide Schottky Diode (GeneSiC)
  • GD10MPS12E - Silicon Carbide Schottky Diode (GeneSiC)
  • GD10MPS12H - Silicon Carbide Schottky Diode (GeneSiC)
  • GD10MPS17H - Silicon Carbide Schottky Diode (GeneSiC)
  • GD10NC60HD - very fast IGBT (STMicroelectronics)
  • GD10NC60KD - short-circuit rugged IGBT (STMicroelectronics)
  • GD10NC60S - fast IGBT (STMicroelectronics)
  • GD14NC60K - IGBT (STMicroelectronics)
Other Datasheets by STARPOWER

Full PDF Text Transcription

Click to expand full text
GD1000HTA75P6HT STARPOWER SEMICONDUCTOR GD1000HTA75P6HT 750V/1000A 6 in one-package IGBT Module IGBT General Description STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness. They are designed for the applications such as hybrid and electric vehicle. Features  Low VCE(sat) Trench IGBT technology  Low switching losses  6μs short circuit capability  VCE(sat) with positive temperature coefficient  Maximum junction temperature 175oC  Low inductance case  Fast & soft reverse recovery anti-parallel FWD  Isolated copper pinfin baseplate using Si3N4 AMB technology Typical Applications  Automotive application  Hybrid and electric vehicle  Inverter for motor drive Equivalent Circuit Schematic ©2024 STARPOWER Semiconductor Ltd.
