GD16585, GD16589 Datasheet - Giga

GD16585 (GD16585 / GD16589) Transmitter MUX

GD16585 and GD16589 are transmitter chips used in SDH STM-64 and SONET OC-192 optical communication systems. The device is available in two versions: u GD16585 for 9.5328 Gbit/s. u GD16589 for 10.66 Gbit/s with Forward Error Correction (FEC). Except the different operating bit rate the two versions .

GD16585 Features

* GIGA’s unique self-synchronizing dynamic phase alignment scheme that allows both: u Source synchronous counter clocking for OIF99.102.5 interfaces. u Forward clocking with phase nulling and jitter clean-up of the clock. These schemes enable the serializer to absorb output delay variations from the u

GD16589_Giga.pdf

This datasheet PDF includes multiple part numbers: GD16585, GD16589. Please refer to the document for exact specifications by model.

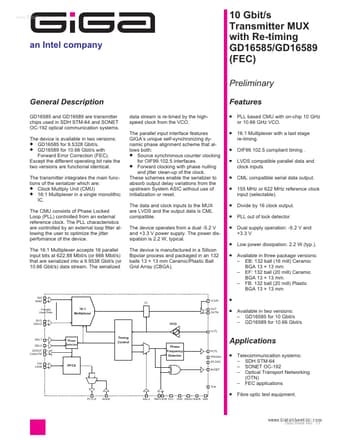

GD16585 Datasheet Preview Page 2 GD16585 Datasheet Preview Page 3

Datasheet Details

Part number:

GD16585, GD16589

Manufacturer:

Giga

File Size:

226.00 KB

Description:

(gd16585 / gd16589) transmitter mux.

Note:

This datasheet PDF includes multiple part numbers: GD16585, GD16589.
Please refer to the document for exact specifications by model.
