GD1000HFX170P2S - IGBT

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

They are designed for the applications such as wind power.

Features

  • Low VCE(sat) Trench IGBT technology.
  • 10μs short circuit capability.
  • VCE(sat) with positive temperature coefficient.
  • Maximum junction temperature 175oC.
  • Enlarged Diode for regenerative operation.
  • Isolated copper baseplate using DBC technology.
  • High power and thermal cycling capability Typical.

📥 Download Datasheet

Datasheet preview – GD1000HFX170P2S

Datasheet Details

Part number GD1000HFX170P2S
Manufacturer STARPOWER
File Size 189.12 KB
Description IGBT
Datasheet download datasheet GD1000HFX170P2S Datasheet

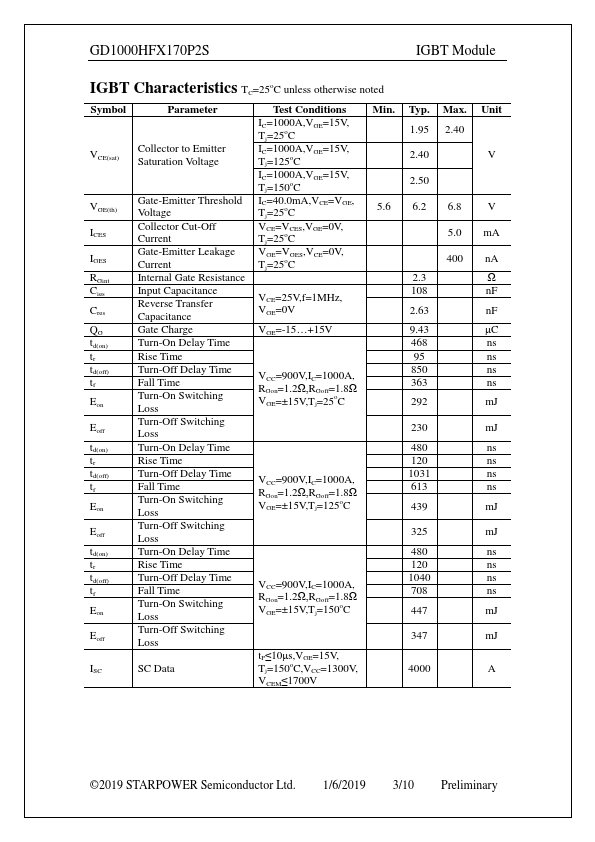

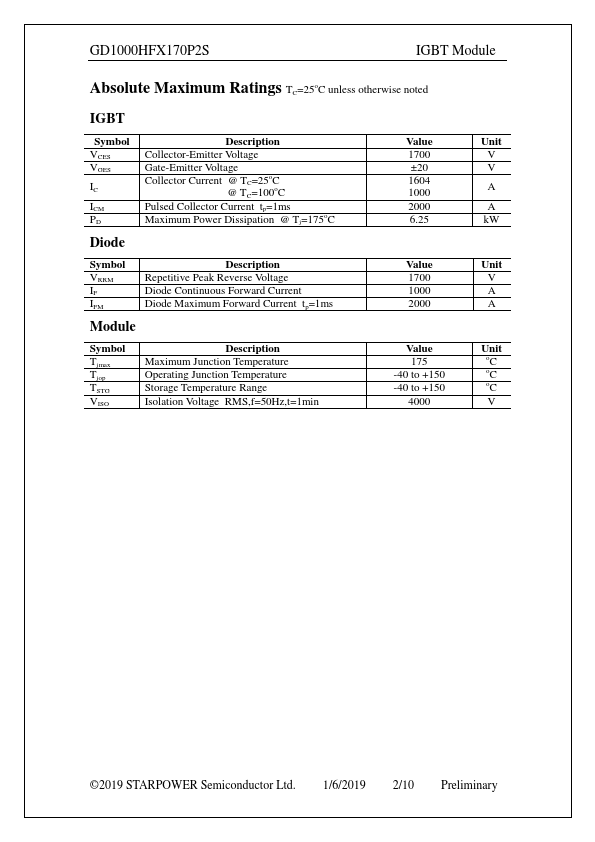

Additional preview pages of the GD1000HFX170P2S datasheet.
