GS1116 - 800mA Low Dropout Voltage Regulator

Datasheet Summary

Description

The GS1116 is a low dropout three-terminal regulator with 800mA output current capability.

In order to obtain lower dropout voltage and fast transient response, which is critical for low voltage applications.

The GS1116 has been optimized.

Features

Adjustable or Fixed Output.
Current Limit and Thermal Protection.
Output Current of 800mA.
1.3V Dropout Voltage.
Line Regulation typically at 0.04% Max.
Load Regulation typically a.

Datasheet Details

Part number	GS1116
Manufacturer	Globaltech
File Size	933.27 KB
Description	800mA Low Dropout Voltage Regulator
Datasheet	GS1116 Datasheet

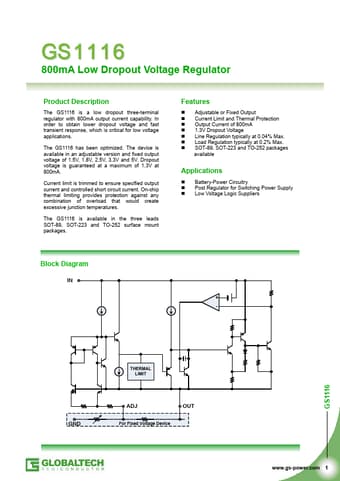

Additional preview pages of the GS1116 datasheet.

📁 Similar Datasheet

GS1117 - 800mA Low Dropout Positive Adjustable Regulator (Vishay Siliconix)

GS1117CE - 800mA Low Dropout Positive Adjustable Regulator (Vishay Siliconix)

GS1117CE-2.5 - 800mA Low Dropout Positive Adjustable Regulator (Vishay Siliconix)

GS1117CE-2.85 - 800mA Low Dropout Positive Adjustable Regulator (Vishay Siliconix)

GS1117CE-3.3 - 800mA Low Dropout Positive Adjustable Regulator (Vishay Siliconix)

GS1117CE-5 - 800mA Low Dropout Positive Adjustable Regulator (Vishay Siliconix)

GS1117CM - 800mA Low Dropout Positive Adjustable Regulator (Vishay Siliconix)

GS1117CM-2.5 - 800mA Low Dropout Positive Adjustable Regulator (Vishay Siliconix)

GS1117CM-2.85 - 800mA Low Dropout Positive Adjustable Regulator (Vishay Siliconix)

GS1117CM-3.3 - 800mA Low Dropout Positive Adjustable Regulator (Vishay Siliconix)

Full PDF Text Transcription

Click to expand full text

800mA Low Dropout Voltage Regulator Product Description The GS1116 is a low dropout three-terminal regulator with 800mA output current capability. In order to obtain lower dropout voltage and fast transient response, which is critical for low voltage applications. The GS1116 has been optimized. The device is available in an adjustable version and fixed output voltage of 1.5V, 1.8V, 2.5V, 3.3V and 5V. Dropout voltage is guaranteed at a maximum of 1.3V at 800mA. Current limit is trimmed to ensure specified output current and controlled short circuit current. On-chip thermal limiting provides protection against any combination of overload that would create excessive junction temperatures. The GS1116 is available in the three leads SOT-89, SOT-223 and TO-252 surface mount packages.
