GS1117CE-5, 800mA Low Dropout Positive Adjustable Regulator

GS1117 New Product Vishay Semiconductors formerly General Semiconductor 800mA Low Dropout Positive Adjustable Regulator SOT-223 TO-252 (DPak) TO-220.
The GS1117 is a low dropout three terminal regulator with 800mA output current capability.

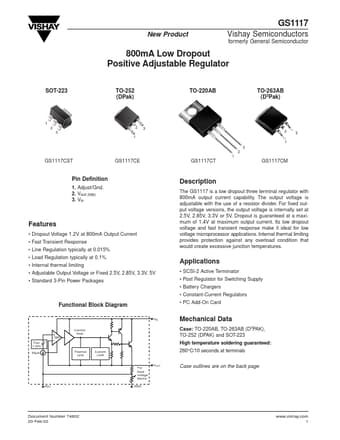

datasheet Preview Page 1 from Datasheet4u.com

GS1117CE-5_VishaySiliconix.pdf

GS1117CE-5 Datasheet Preview — Preview of GS1117CE-5 PDF

Datasheet Details

Part number:

GS1117CE-5

Manufacturer:

Vishay ↗ Siliconix

File Size:

81.90 KB

Description:

800mA Low Dropout Positive Adjustable Regulator

Features

* Dropout Voltage 1.2V at 800mA Output Current
* Fast Transient Response
* Line Regulation typically at 0.015%
* Load Regulation typically at 0.1%
* Internal thermal limiting
* Adjustable Output Voltage or Fixed 2.5V, 2.85V, 3.3V, 5V
* Standard
