GS1117A - 1A Low Dropout Voltage Regulator

Datasheet Summary

Description

The GS1117A is a low dropout three-terminal regulator with 1A output current capability.

In order to obtain lower dropout voltage and fast transient response , which is critical for low voltage applications.

The GS1117A has been optimized.

Features

Adjustable or Fixed Output.
Current Limit and Thermal Protection.
Output Current of 1A.
1.3V Dropout Voltage.
Line Regulation typically at 0.04% Max.
Load Regulation typically at 0.2% Max.
RoHS Compliant, 100%Pb & Halogen Free.

Datasheet Details

Part number	GS1117A
Manufacturer	Globaltech
File Size	2.19 MB
Description	1A Low Dropout Voltage Regulator
Datasheet	GS1117A Datasheet
Additional preview pages of the GS1117A datasheet.

📁 Similar Datasheet

GS1117 - 800mA Low Dropout Positive Adjustable Regulator (Vishay Siliconix)

GS1117CE - 800mA Low Dropout Positive Adjustable Regulator (Vishay Siliconix)

GS1117CE-2.5 - 800mA Low Dropout Positive Adjustable Regulator (Vishay Siliconix)

GS1117CE-2.85 - 800mA Low Dropout Positive Adjustable Regulator (Vishay Siliconix)

GS1117CE-3.3 - 800mA Low Dropout Positive Adjustable Regulator (Vishay Siliconix)

GS1117CE-5 - 800mA Low Dropout Positive Adjustable Regulator (Vishay Siliconix)

GS1117CM - 800mA Low Dropout Positive Adjustable Regulator (Vishay Siliconix)

GS1117CM-2.5 - 800mA Low Dropout Positive Adjustable Regulator (Vishay Siliconix)

GS1117CM-2.85 - 800mA Low Dropout Positive Adjustable Regulator (Vishay Siliconix)

GS1117CM-3.3 - 800mA Low Dropout Positive Adjustable Regulator (Vishay Siliconix)

Full PDF Text Transcription

Click to expand full text

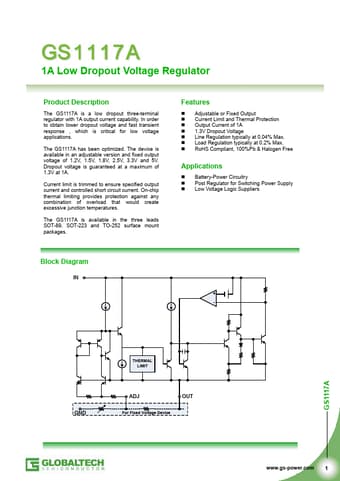

1A Low Dropout Voltage Regulator Product Description The GS1117A is a low dropout three-terminal regulator with 1A output current capability. In order to obtain lower dropout voltage and fast transient response , which is critical for low voltage applications. The GS1117A has been optimized. The device is available in an adjustable version and fixed output voltage of 1.2V, 1.5V, 1.8V, 2.5V, 3.3V and 5V. Dropout voltage is guaranteed at a maximum of 1.3V at 1A. Current limit is trimmed to ensure specified output current and controlled short circuit current. On-chip thermal limiting provides protection against any combination of overload that would create excessive junction temperatures. The GS1117A is available in the three leads SOT-89, SOT-223 and TO-252 surface mount packages.
