GS1117CE-2.5

800mA Low Dropout Positive Adjustable Regulator

GS1117CE-2.5 Features

* Dropout Voltage 1.2V at 800mA Output Current

* Fast Transient Response

* Line Regulation typically at 0.015%

* Load Regulation typically at 0.1%

* Internal thermal limiting

* Adjustable Output Voltage or Fixed 2.5V, 2.85V, 3.3V, 5V

* Standard

GS1117CE-2.5 General Description

The GS1117 is a low dropout three terminal regulator with 800mA output current capability. The output voltage is adjustable with the use of a resistor divider. For fixed output voltage versions, the output voltage is internally set at 2.5V, 2.85V, 3.3V or 5V. Dropout is guaranteed at a maximum of 1..

GS1117CE-2.5 Datasheet (81.90 KB)

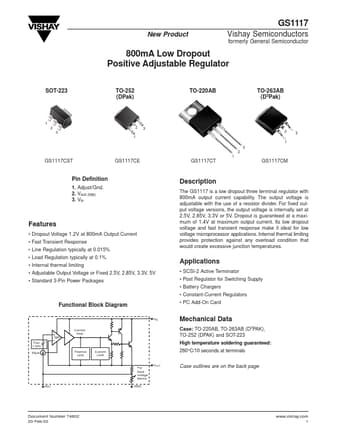

Preview of GS1117CE-2.5 PDF

Datasheet Details

Part number:

GS1117CE-2.5

Manufacturer:

Vishay ↗ Siliconix

File Size:

81.90 KB

Description:

800ma low dropout positive adjustable regulator.
GS1117 New Product Vishay Semiconductors formerly General Semiconductor 800mA Low Dropout Positive Adjustable Regulator SOT-223 TO-252 (DPak) TO-220.
