GS1185L - 3A Low Dropout Voltage Regulator

Datasheet Summary

Description

The GS1185L is a low drop voltage regulator able to provide up to 3A output current.

The dropout voltage of the device is guaranteed at a maximum 1.3V at the maximum output current, decreasing at lower loads.

Features

  • Three Terminal Adjustable or Fixed Output Voltages 1.5V, 1.8V, 2.5V, 3.3V and 5V.
  • Guaranteed Output Current up to 3A.
  • Typical Dropout 1.3V (at 3A).
  • Output Tolerance: ±2% at 25 ºC.
  • Wind Operating Temperature Range:-40ºC.
  • to 125 ºC.
  • Ultra low current consumption(0.35mA typ. ).
  • Ultra low Adjustment Current(6uA typ. ).
  • Package Available: TO-220, TO-263, TO-252, and SOT-223.
  • Suitable for use with MLCC capacitors.
  • RoHS Compliant,100%Pb & Halogen Fr.

📥 Download Datasheet

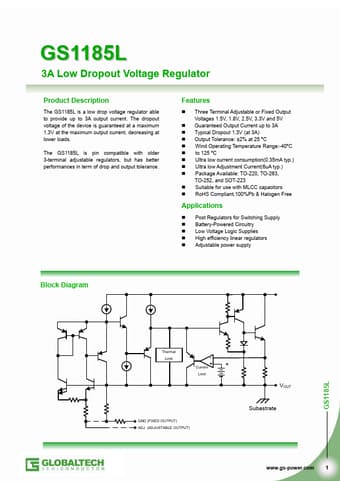

Datasheet preview – GS1185L
