GSM4422 Datasheet, Mosfet, Globaltech

GSM4422 Features

  • Mosfet
  • 30V/ 6.8A,RDS(ON)=36mΩ@VGS=10V
  • 30V/ 6.0A,RDS(ON)=42mΩ@VGS=4.5V
  • 30V/ 5.2A,RDS(ON)=50mΩ@VGS=2.5V
  • Super high density cell design for extremely low R

PDF File Details

Part number:

GSM4422

Manufacturer:

Globaltech

File Size:

413.57kb

Download:

📄 Datasheet

Description:

N-channel mosfet. GSM4422, N-Channel enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge. These devi

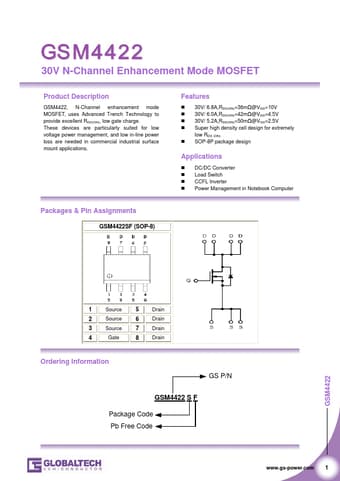

Datasheet Preview: GSM4422 📥 Download PDF (413.57kb)
Page 2 of GSM4422 Page 3 of GSM4422

GSM4422 Application

  • Applications Packages & Pin Assignments GSM4422SF (SOP-8) Features
  • 30V/ 6.8A,RDS(ON)=36mΩ@VGS=10V
  • 30V/ 6.0A,RDS(ON)=42mΩ@VGS=4
