GSM4953WS - P-Channel MOSFET

GSM4953WS Description

GSM4953WS 30V P-Channel Enhancement Mode MOSFET Product .
GSM4953WS, P-Channel enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge.

GSM4953WS Features

* -30V/-5.4A,RDS(ON)=60mΩ@VGS=-10V
* -30V/-4.2A,RDS(ON)=80mΩ@VGS=-4.5V
* Super high density cell design for extremely low RDS (ON)
* SOP

📥 Download Datasheet

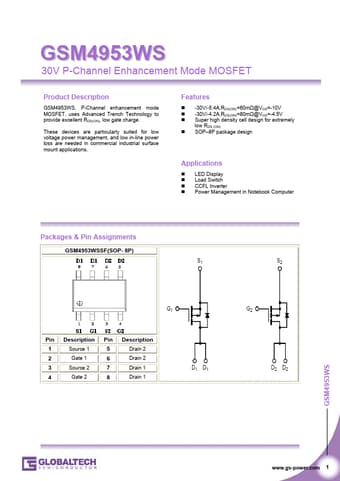

Preview of GSM4953WS PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GSM4953WS
Manufacturer
Globaltech
File Size
969.08 KB
Datasheet
GSM4953WS-Globaltech.pdf
Description
P-Channel MOSFET
