GSM4599C - MOSFET

Product Overview

Globaltech

📥 Download Datasheet

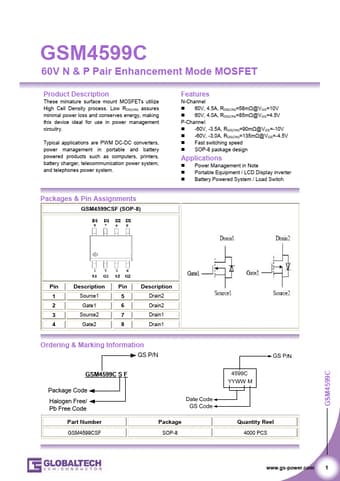

GSM4599C MOSFET by Globaltech - Datasheet Preview — Datasheet preview – GSM4599C

Datasheet Details

Part number	GSM4599C
Manufacturer	Globaltech
File Size	664.62 KB
Description	MOSFET
Datasheet	GSM4599C Datasheet
Additional preview pages of the GSM4599C datasheet.

Product details

Description

These miniature surface mount MOSFETs utilize High Cell Density process.

Features

N-Channel.
60V, 4.5A, RDS(ON)=58mΩ@VGS=10V.
60V, 4.0A, RDS(ON)=85mΩ@VGS=4.5V P-Channel.
-60V, -3.5A, RDS(ON)=90mΩ@VGS=-10V.
-60V, -3.0A, RDS(ON)=135mΩ@VGS=-4.5V.
Fast switching speed.
SOP-8 package design.
