HM0565 - Silicon N-Channel Power MOSFET

H&M Semiconductor

📥 Download Datasheet

HM0565 Datasheet Preview — Preview of HM0565 PDF

Datasheet Details

Part number	HM0565
Manufacturer	H&M Semiconductor
File Size	688.51 KB
Description	Silicon N-Channel Power MOSFET
Datasheet	HM0565-HMSemiconductor.pdf

HM0565 Product details

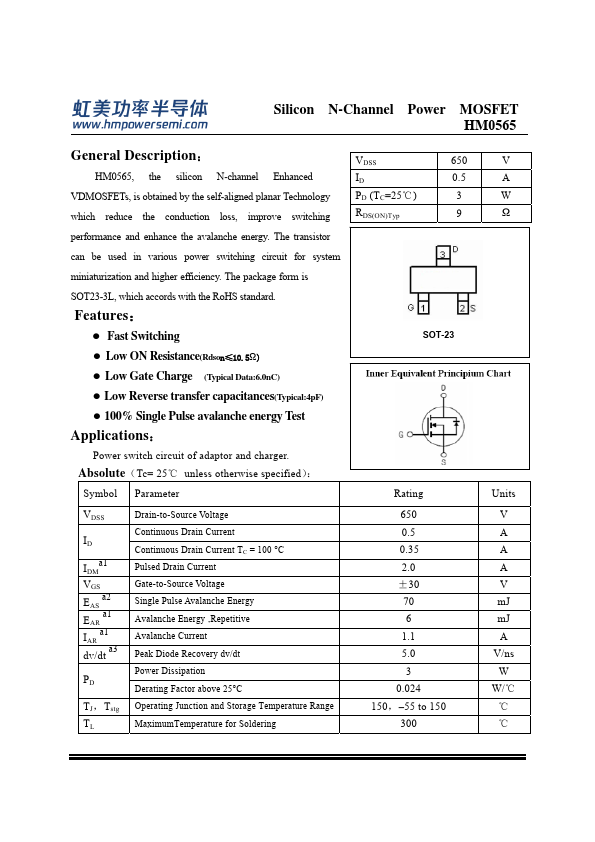

Description

VDSS 650 HM0565, the silicon N-channel Enhanced ID 0.5 VDMOSFETs, is obtained by the self-aligned planar Technology PD (TC=25℃) 3 which reduce the conduction loss, improve switching RDS(ON)Typ 9 performance and enhance the avalanche energy.The transistor can be used in various power switching circuit for system miniaturization and higher efficiency.The package form is SOT23-3L, which accords with the RoHS standard.

Features

z Fast Switching z Low ON Resistance(Rdson≤10.5Ω) z Low Gate Charge (Typical Data:6.0nC) z Low Reverse transfer capacitances(Typical:4pF) z 100% Single Pulse avalanche energy Test.
