HM10N15D N-Channel Enhancement Mode Power MOSFET

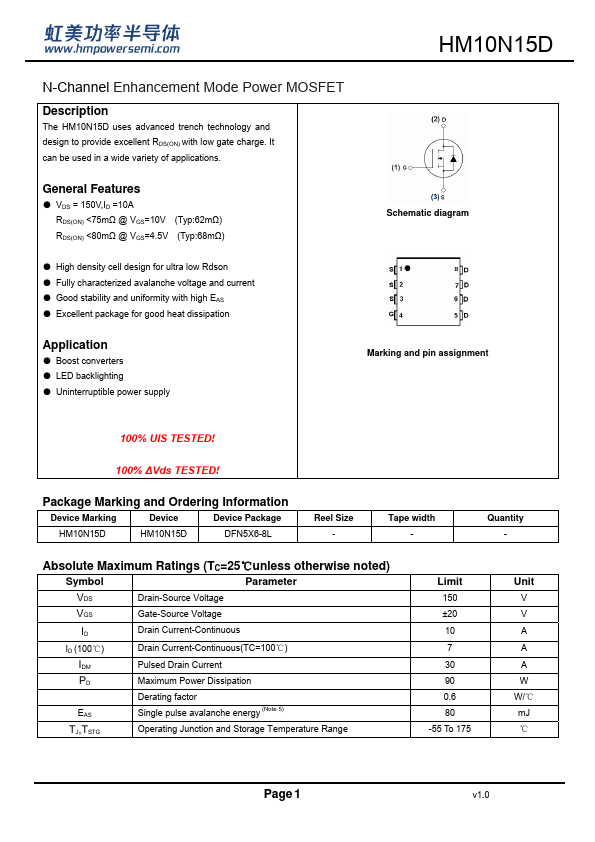

📥 Download Datasheet Datasheet Preview Page 1

Description

HM10N15D N-Channel Enhancement Mode Power MOSFET .
The HM10N15D uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

📥 Download Datasheet

Preview of HM10N15D PDF

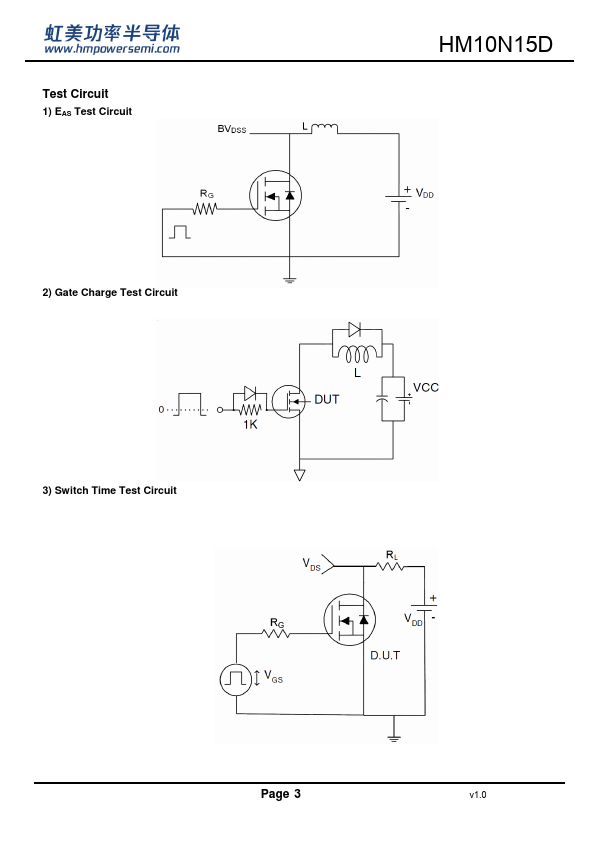

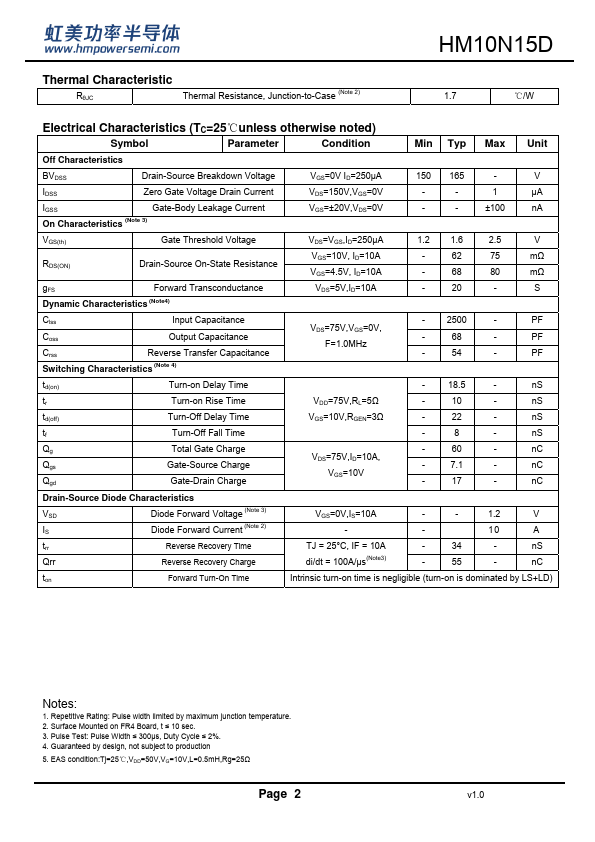

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
HM10N15D
Manufacturer
H&M Semiconductor
File Size
551.89 KB
Datasheet
HM10N15D-HMSemiconductor.pdf
Description
N-Channel Enhancement Mode Power MOSFET

Features

* VDS = 150V,ID =10A RDS(ON)
