HM3400E - N-Channel 30V MOSFET

HM3400E Description

HM3400E N-Channel 30V (D-S) MOSFET GENERAL .
The HM3400E is the N-Channel logic enhancement mode power field effect transistors are produced using high cell density, DMOS trench technology.

HM3400E Features

* RDS(ON)= 450 mΩ @VGS=4.5V
* RDS(ON)= 550 mΩ @VGS=2.5V
* Super high density cell design for extremely low RDS(ON)
* Exceptional on-resistance and maximum DC current capability
* Capable doing Cu wire bonding DSC N-Channel 3D 3400E G1 2S Marking and pin Assignment SOT-23 t

HM3400E Applications

* Power Management in Note book
* Portable Equipment
* Battery Powered System
* Load Switch

📥 Download Datasheet

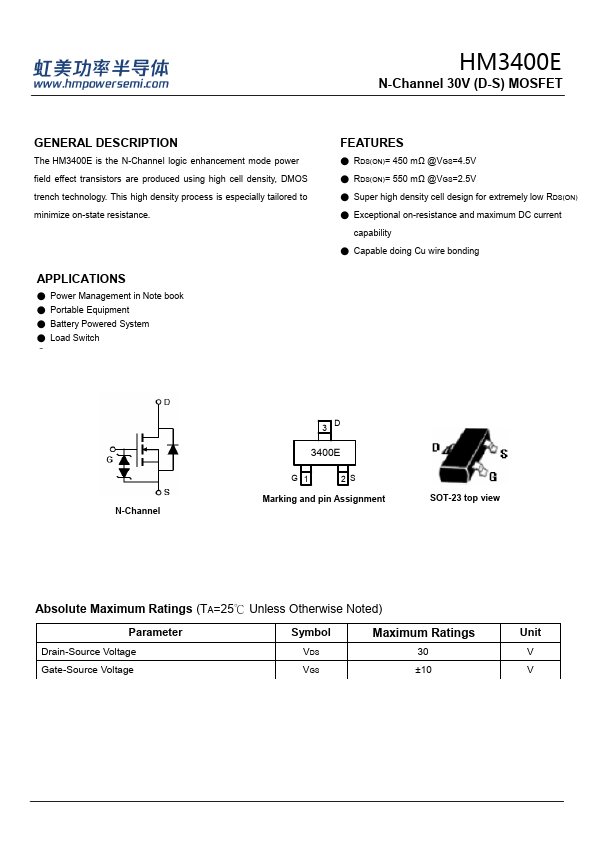

Preview of HM3400E PDF

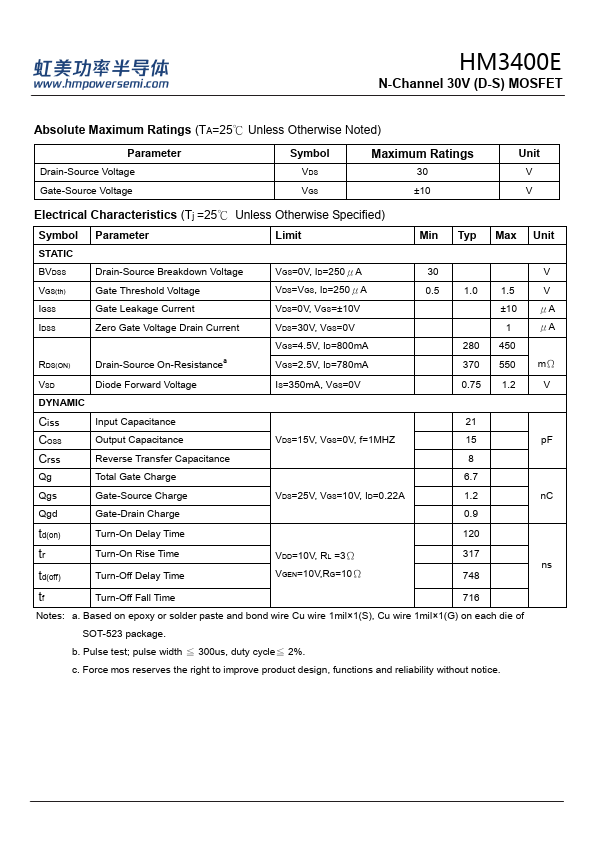

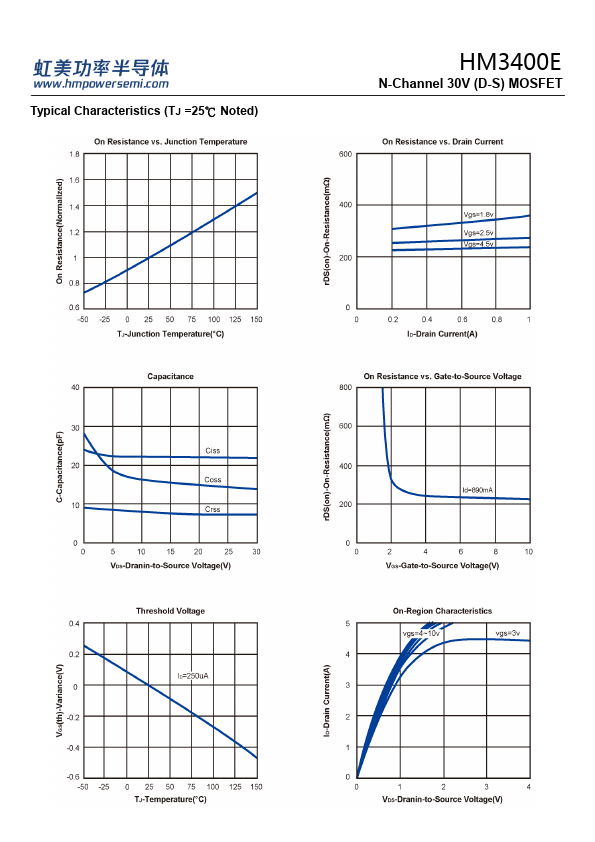

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HM3400E
Manufacturer
H&M Semiconductor
File Size
898.12 KB
Datasheet
HM3400E-HMSemiconductor.pdf
Description
N-Channel 30V MOSFET
