HM3400F - N-Channel Enhancement Mode Power MOSFET

HM3400F Description

HM3400F N-Channel Enhancement Mode Power MOSFET .
The HM3400F uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.

HM3400F Features

* VDS = 30V,ID = 4.0A RDS(ON) < 70mΩ @ VGS=2.5V RDS(ON) < 48mΩ @ VGS=4.5V RDS(ON) < 42mΩ @ VGS=10V S Schematic diagram
* High Power and current handing capability
* Lead free product is acquired

HM3400F Applications

* Load switch
* Power management SOT-23 top view Package Marking And Ordering Information Device Marking Device Device Package 3400 HM3400F SOT-23 Reel Size Ø180mm Tape width 8 mm Quantity 3000 units Absolute Maximum Ratings (TA=25℃unless otherwise noted) Parameter Symbol Drain-

📥 Download Datasheet

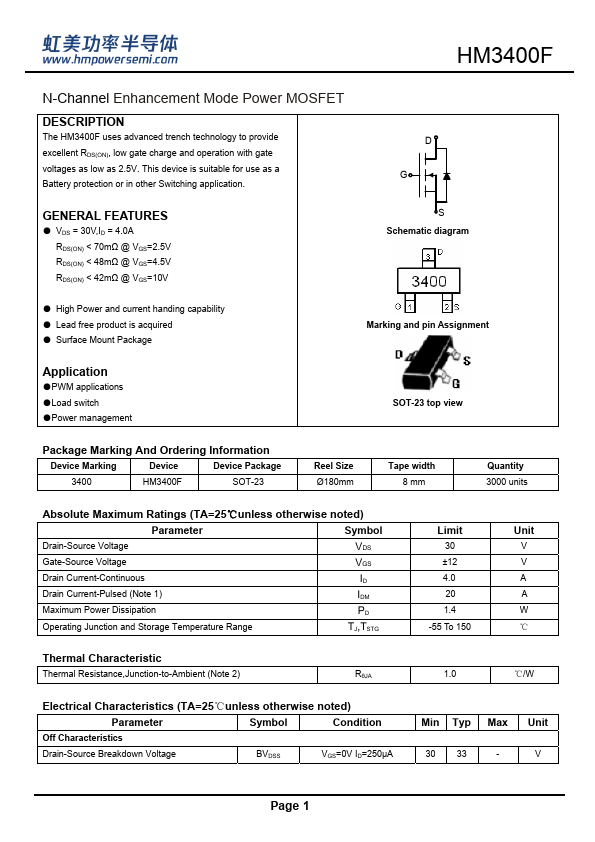

Preview of HM3400F PDF

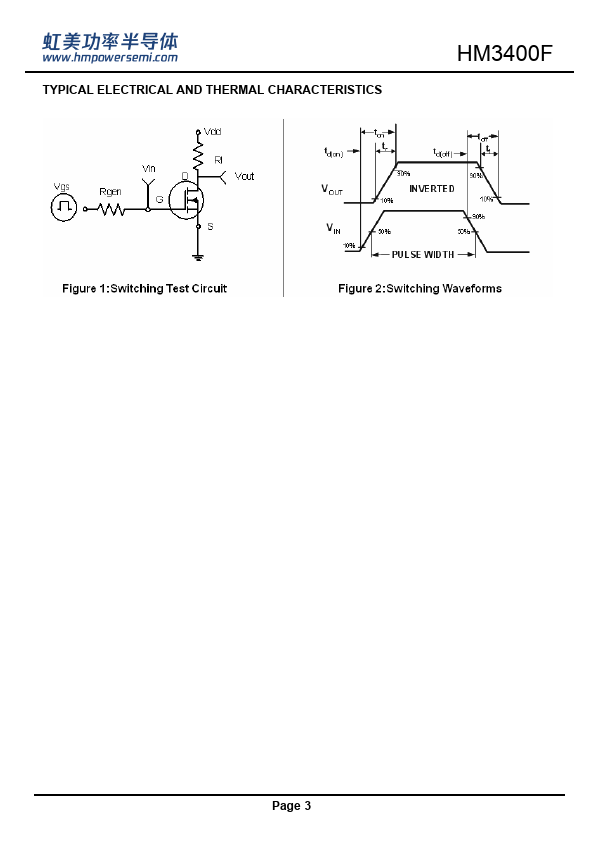

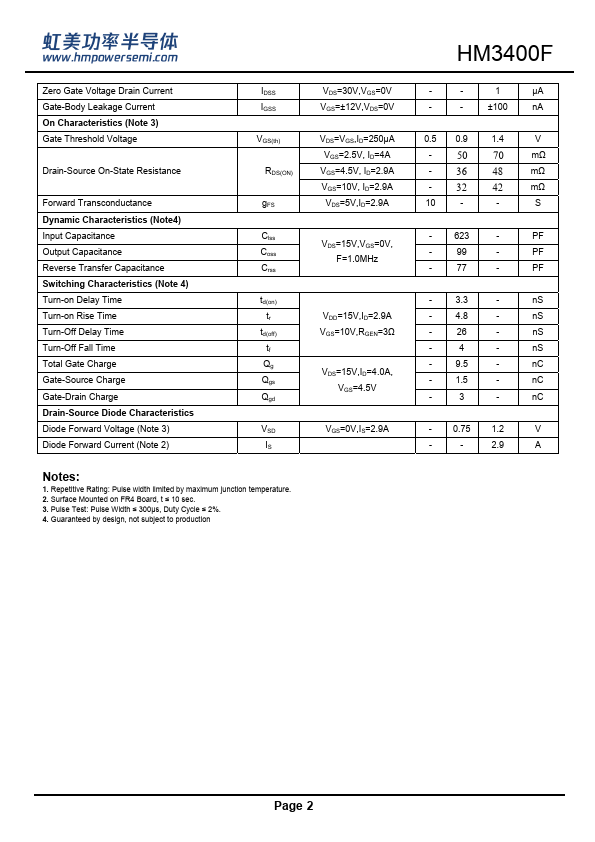

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HM3400F
Manufacturer
H&M Semiconductor
File Size
333.70 KB
Datasheet
HM3400F-HMSemiconductor.pdf
Description
N-Channel Enhancement Mode Power MOSFET
