HM3420 Datasheet, Mosfet, H&M Semiconductor

HM3420 Features

  • Mosfet
  • High Efficiency: Up to 97%
  • Capable of Delivering 2A
  • 1.3MHz Switching Frequency
  • No External Schottky Diode Needed
  • Light-load Mode
  • <

PDF File Details

Part number:

HM3420

Manufacturer:

H&M Semiconductor

File Size:

1.28MB

Download:

📄 Datasheet

Description:

N-channel enhancement mode power mosfet. The HM3420 is a high-efficiency, DC-to-DC step-down switching regulators, capable of delivering up to 2A of output current. The devic

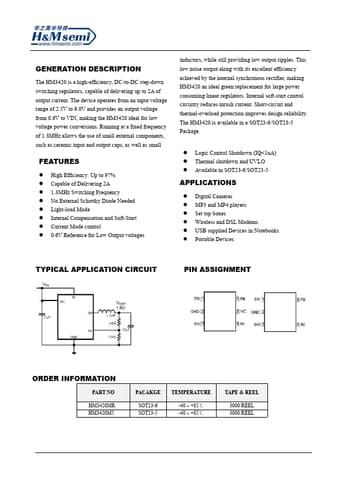

Datasheet Preview: HM3420 📥 Download PDF (1.28MB)
Page 2 of HM3420 Page 3 of HM3420
