HM3421 Datasheet, Mosfet, H&M Semiconductor

HM3421 Features

  • Mosfet
  • VDS = -30V,ID = -4.2A RDS(ON) < 130mΩ @ VGS=-2.5V RDS(ON) < 75mΩ @ VGS=-4.5V RDS(ON) < 65mΩ @ VGS=-10V
  • High Power and current handing capability
  • Lead free

PDF File Details

Part number:

HM3421

Manufacturer:

H&M Semiconductor

File Size:

526.21kb

Download:

📄 Datasheet

Description:

P-channel enhancement mode power mosfet. The HM3421 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2

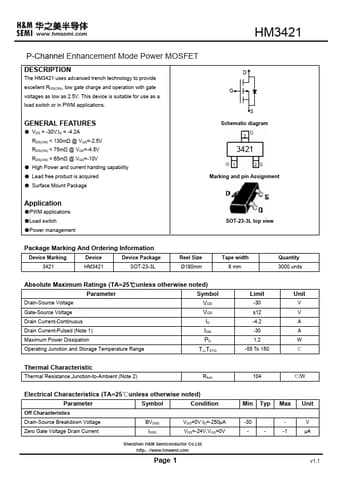

Datasheet Preview: HM3421 📥 Download PDF (526.21kb)
Page 2 of HM3421 Page 3 of HM3421

HM3421 Application

  • Applications GENERAL FEATURES
  • VDS = -30V,ID = -4.2A RDS(ON) < 130mΩ @ VGS=-2.5V RDS(ON) < 75mΩ @ VGS=-4.5V RDS(ON) < 65mΩ @ VGS=-10V
