HM4480 - N-Channel Enhancement Mode Power MOSFET

Product Overview

H&M Semiconductor

📥 Download Datasheet

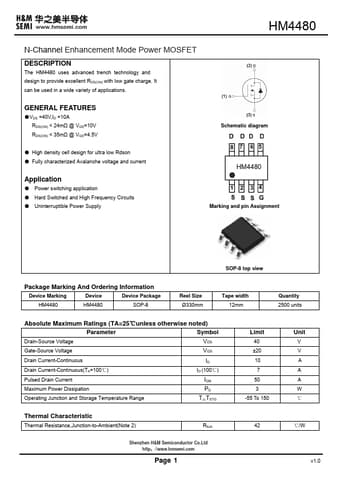

HM4480 N-Channel Enhancement Mode Power MOSFET by H&M Semiconductor - Datasheet Preview — Datasheet preview – HM4480

Datasheet Details

Part number	HM4480
Manufacturer	H&M Semiconductor
File Size	425.10 KB
Description	N-Channel Enhancement Mode Power MOSFET
Datasheet	HM4480 Datasheet
Additional preview pages of the HM4480 datasheet.

Product details

Description

The HM4480 uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

Features

VDS =40V,ID =10A RDS(ON) < 24mΩ @ VGS=10V RDS(ON) < 35mΩ @ VGS=4.5V.
High density cell design for ultra low Rdson.
Fully characterized Avalanche voltage and current.
