HM4487 - P-Channel 100V MOSFET

HM4487 Description

HM4487-VB HM4487-VB Datasheet P-Channel 100-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) () - 100 0.160 at VGS = - 10 V 0.200.

HM4487 Features

* Trench Power MOSFET

HM4487 Applications

* Active Clamp in Intermediate DC/ DC Power Supplies
* H-Bridge High Side Switch for Lighting Application S S1 S2 S3 G4 8D 7D 6D 5D G D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Volta

📥 Download Datasheet

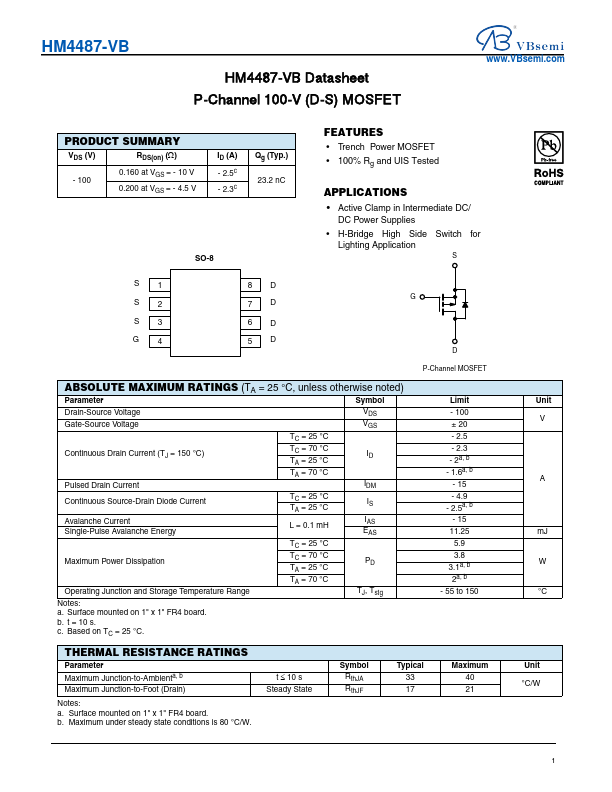

Preview of HM4487 PDF

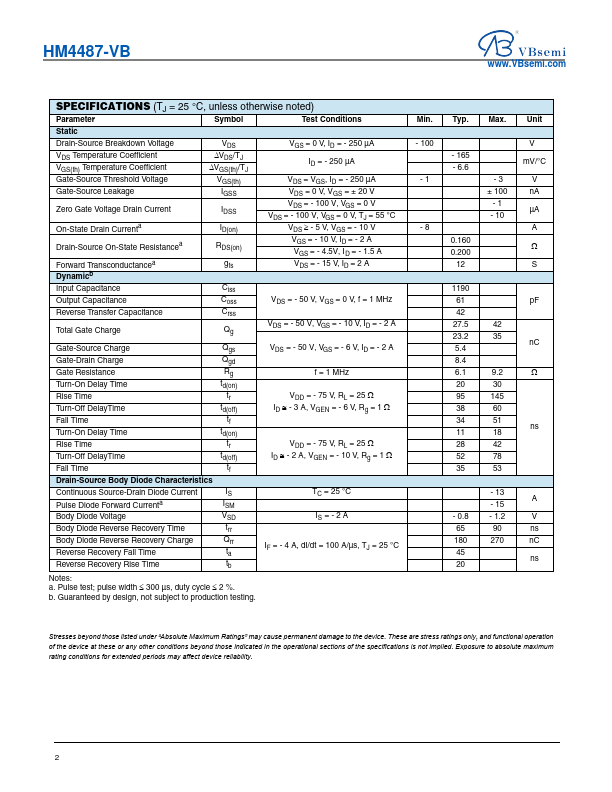

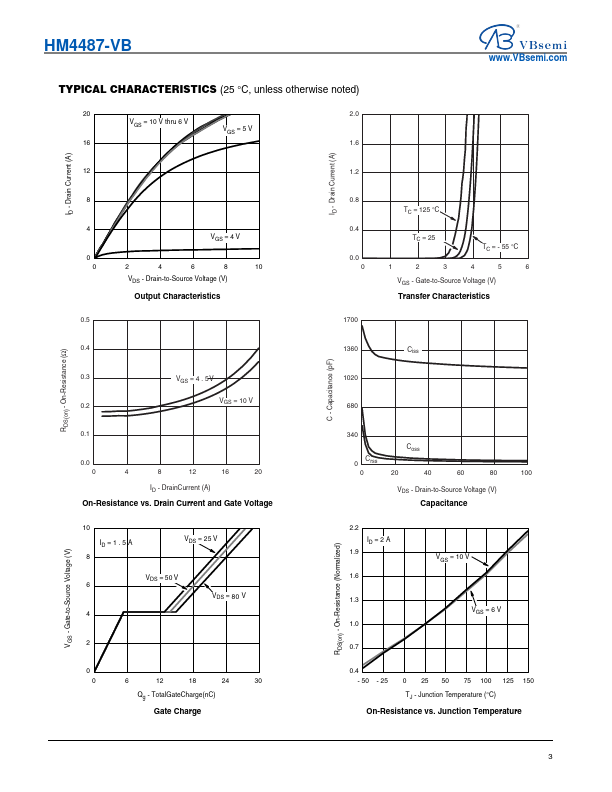

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HM4487
Manufacturer
VBsemi
File Size
267.09 KB
Datasheet
HM4487-VBsemi.pdf
Description
P-Channel 100V MOSFET
