HM4485A Datasheet, Mosfet, H&M Semiconductor

HM4485A Features

  • Mosfet
  • VDS =-40V,ID =-17.5A RDS(ON) <10mΩ @ VGS=-10V RDS(ON) <13mΩ @ VGS=-4.5V
  • High density cell design for ultra low Rdson
  • Fully characterized avalanche voltage

PDF File Details

Part number:

HM4485A

Manufacturer:

H&M Semiconductor

File Size:

447.43kb

Download:

📄 Datasheet

Description:

P-channel enhancement mode power mosfet. The HM4485A uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge. It can be used in a wide va

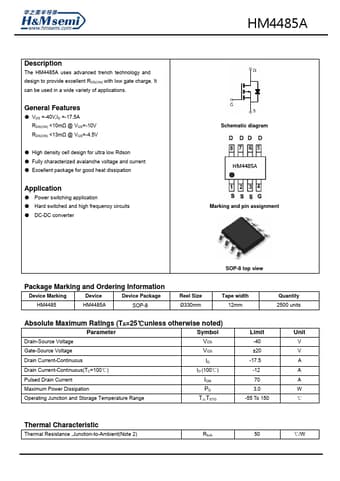

Datasheet Preview: HM4485A 📥 Download PDF (447.43kb)
Page 2 of HM4485A Page 3 of HM4485A

HM4485A Application

  • Applications General Features
  • VDS =-40V,ID =-17.5A RDS(ON) <10mΩ @ VGS=-10V RDS(ON) <13mΩ @ VGS=-4.5V
  • High density cell design
