HM4611Q - N And P-Channel Enhancement Mode MOSFET

H&M Semiconductor

📥 Download Datasheet

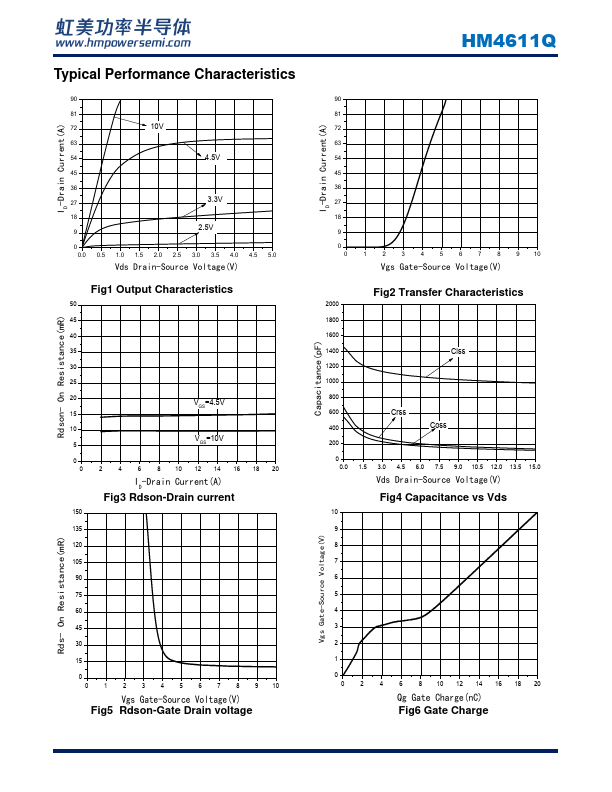

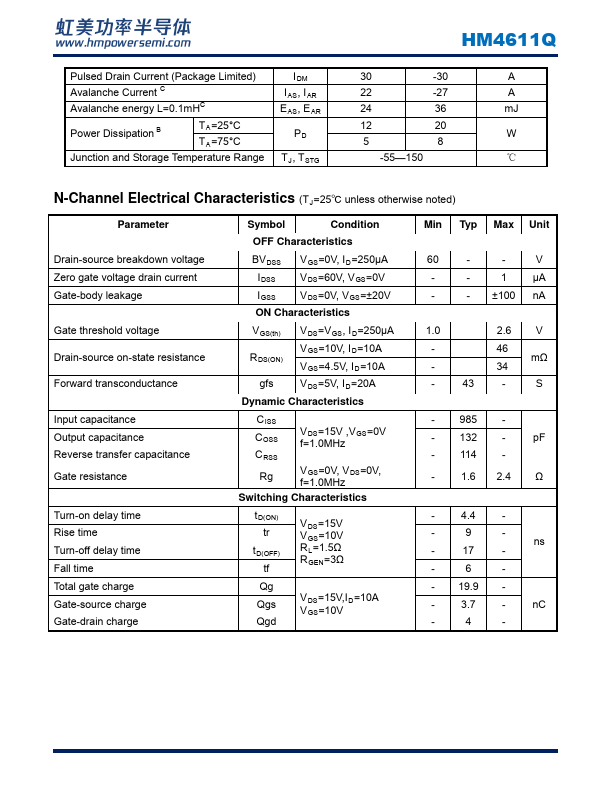

HM4611Q Datasheet Preview — Preview of HM4611Q PDF

Datasheet Details

Part number	HM4611Q
Manufacturer	H&M Semiconductor
File Size	846.65 KB
Description	N And P-Channel Enhancement Mode MOSFET
Datasheet	HM4611Q-HMSemiconductor.pdf

HM4611Q Product details

Description

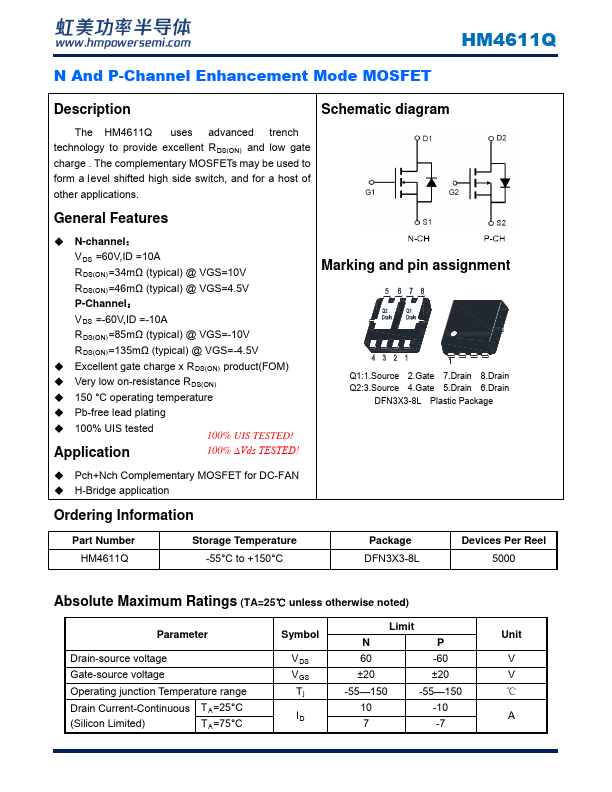

Schematic diagram The HM4611Q uses advanced trench technology to provide excellent RDS(ON) and low gate charge .The complementary MOSFETs may be used to form a level shifted high side switch, and for a host of other applications.General

Features

N-channel： VDS =60V,ID =10A RDS(ON)=34mΩ (typical) @ VGS=10V RDS(ON)=46mΩ (typical) @ VGS=4.5V P-Channel： VDS =-60V,ID =-10A RDS(ON)=85mΩ (typical) @ VGS=-10V RDS(ON)=135mΩ (typical) @ VGS=-4.5V.
Excellent gate charge x RDS(ON) product(FOM).
Very low on-resistance RDS(ON).
150 °C operating temperature.
Pb-free lead plating.
100% UIS tested 100% UIS TESTED!.
