HM4830 Dual N-Channel Enhancement Mode Power MOSFET

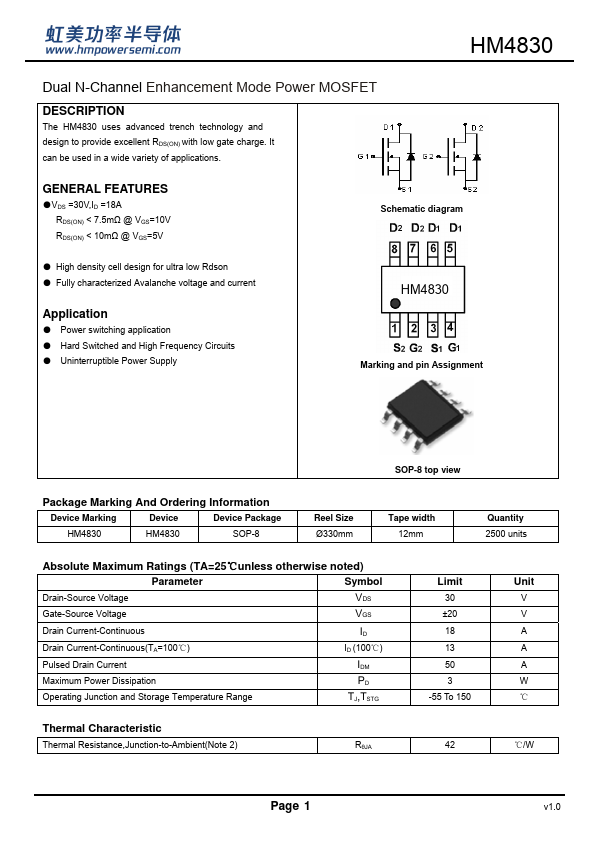

📥 Download Datasheet Datasheet Preview Page 1

Description

HM4830 Dual N-Channel Enhancement Mode Power MOSFET .
The HM4830 uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

📥 Download Datasheet

Preview of HM4830 PDF

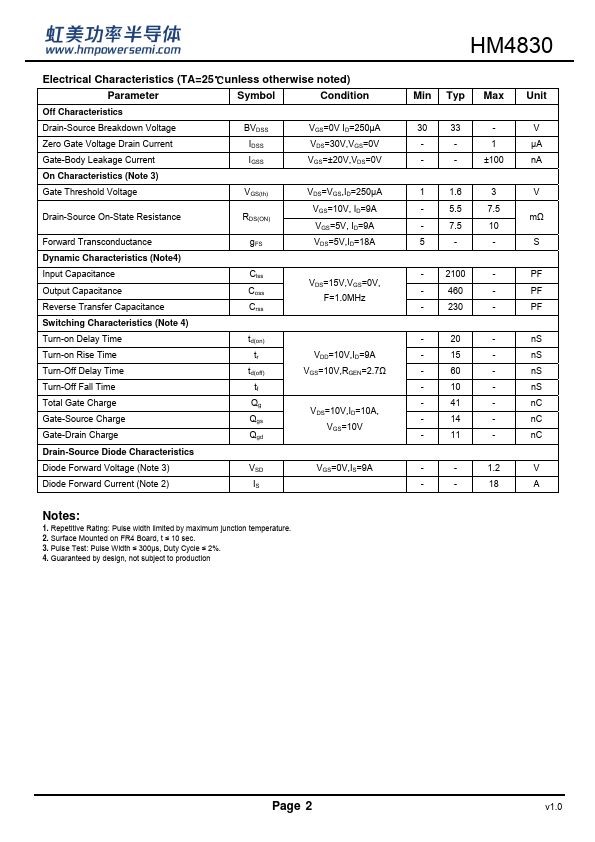

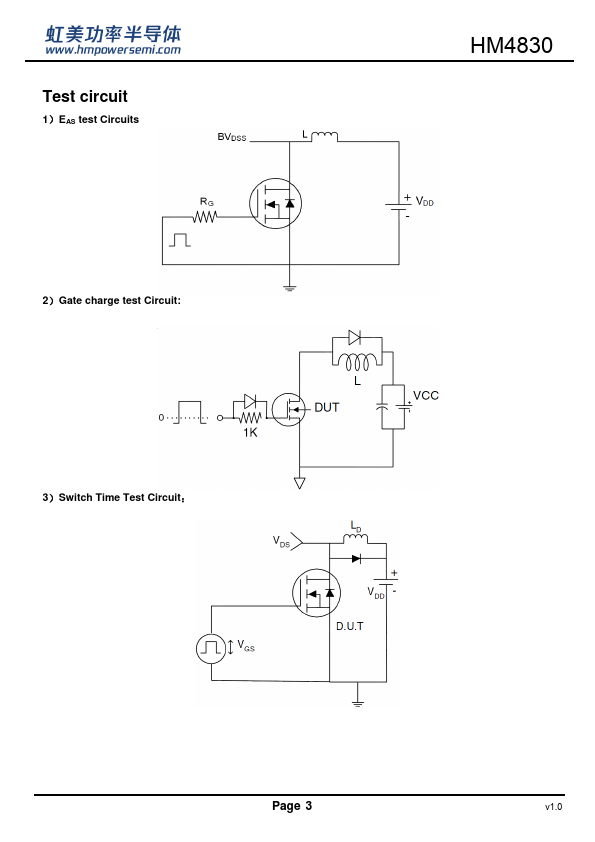

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
HM4830
Manufacturer
H&M Semiconductor
File Size
461.59 KB
Datasheet
HM4830-HMSemiconductor.pdf
Description
Dual N-Channel Enhancement Mode Power MOSFET

Features

* VDS =30V,ID =18A RDS(ON) < 7.5mΩ @ VGS=10V RDS(ON) < 10mΩ @ VGS=5V Schematic diagram
* High density cell design for ultra low Rdson
